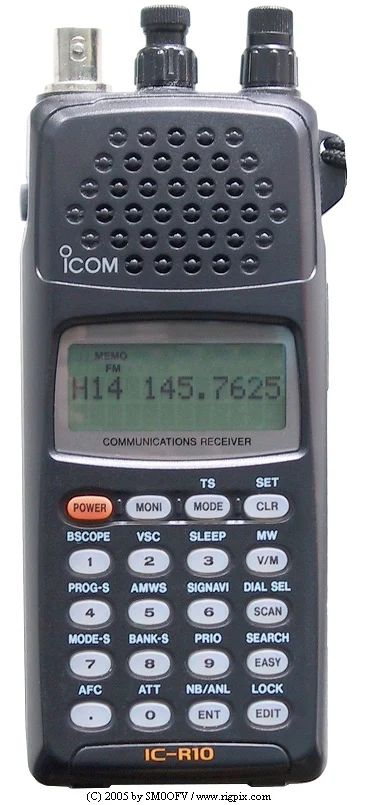

IC-R10
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.5-1300 MHz (Cellular blocked in the US) |
| Tuning steps | 100 / 500 Hz, 1 / 5 / 6.25 / 8 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz A user defined tuning step between 0.1-999.9 KHz is also available |
| Frequency stability | — |
| Mode | AM / FM / WFM / SSB / CW |
| Channels / memory management | 800 regular in 16 banks @ 6.25 channels per secon 100 auto memory write 100 program skip Alpha tags Priority watch Non-volatile EEPROM storage |
| Power supply | 4.8-6 VDC (Four R6/AA alkaline or NiCd cells)or 4.8-16 VDC external |
| Current drain / power consumption | 38-180 mA |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 58*130*31 mm (2.28*5.12*1.22") |
| Weight | 310 g (10.93 oz) |
| Other features | CI-V. VSC. Bandscope. Attenuator. NB/ANL. AFC. Sleep timer. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 266.7 MHz (340-1000 MHz) 1st IF: 429.1 MHz (Except above frequencies) 2nd IF: 10.7 MHz 3rd IF: 455 KHz |
|---|---|

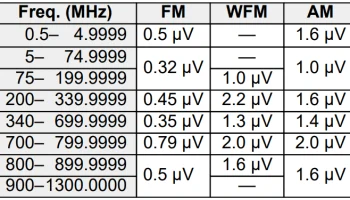

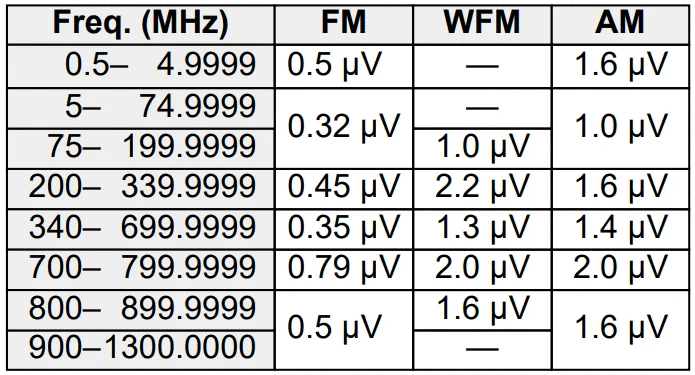

| Sensitivity | AM 0.5-5 MHz: 1.6 uV 5-200 MHz: 1.0 uV 200-340 MHz: 1.6 uV 340-700 MHz: 1.4 uV 700-800 MHz: 2.0 uV 800-1300 MHz: 1.6 uV FM 0.5-5 MHz: 0.5 uV 5-200 MHz: 0.32 uV 200-340 MHz: 0.45 uV 340-700 MHz: 0.35 uV 700-800 MHz: 0.79 uV 800-1300 MHz: 0.5 uV WFM 75-200 MHz: 1.0 uV 200-340 MHz: 2.2 uV 340-700 MHz: 1.3 uV 700-800 MHz: 2.0 uV 800-900 MHz: 1.6 uV SSB/CW 0.5-5 MHz: 0.4 uV 5-200 MHz: 0.25 uV 200-340 MHz: 0.4 uV 340-700 MHz: 0.32 uV 700-800 MHz: 0.63 uV 800-1300 MHz: 0.4 uV |
| Squelch sensitivity | Squelch matrix |
| Noise figure | — |
| Selectivity | AM/FM 15 KHz (-6 dB) WFM 150 KHz (-6 dB) SSB 4 KHz (-6 dB) |
| Image rejection | — |
| AF output power / speaker | 120 mW at 10% distortion / 8 ohm |
| External speaker connector | TRS «Minijack» (3.5 mm) |
MISCELLANEOUS
| Manufactured | Japan, 1996-1999 (Discontinued) |
|---|---|
| Additional info | New price 2001 in Sweden: SEK 4990:- |
| CP-12L CS-R10 CT-17 HP-4 LC-140 OPC-254L OPC-474 OPC-478 SP-13 | Cigarette lighter cable with noise filter Cloning software CI-V level converter Headphones Carrying case DC cable. For 4.5 to 16 VDC external power Cloning cable (Radio-to-radio) Cloning cable, RS-232C (Radio-to-computer) Earphone |
