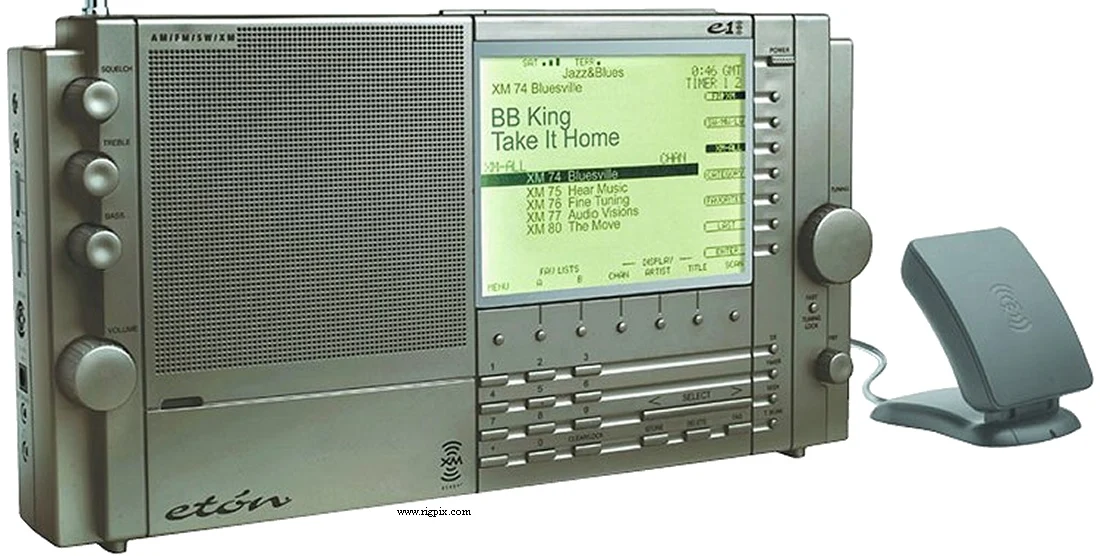

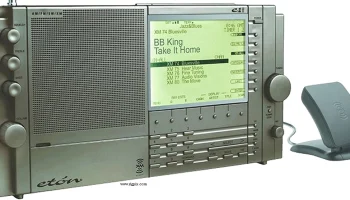

E1 XM
Источник:
GENERAL
| Type | HF/VHF receiver |
|---|---|
| Frequency range | 0.1-30 / 76-90 / 87-108 MHz (2.3325-2.345 GHz XM Digital Satellite radio option) |
| Tuning steps | AM/SSB: 10 / 100 Hz, 1 / 5 / 9 / 10 KHzWFM: 20 / 100 KHz |
| Frequency stability | ±10 ppm @ 0 to 50°C (32 to 122°F) |
| Mode | AM / AM-sync / SSB / WFM Stereo |
| Channels / memory management | 500 regular 1200 country Alpha tags |
| Power supply | 4.8-6 VDC (Four LR20 / D batteries)or 7-14 VDC external |
| Current drain / power consumption | Max than 900 mA @ 9 VDCAverage 175-350 mA (Backlight off) |
| Antenna impedance / connector | 50-75 ohm / PAL (Male)Built-in telescopic whip |
| Dimensions (W*H*D) | 334*190*65 mm (13.12*7.5*2.56") |
| Weight | 1.9 Kg (4.19 lb) |
| Other features | Dual clocks and timers. PBT. 5.7" LCD (320*240 pixels). Scanning. |
RECEIVER SECTION
| Receiver system | Single conversion superheterodyne (WFM) IF: 10.7 MHz Double conversion superheterodyne (AM/SSB) 1st IF: 45.0 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | AM (10 dB S+N/N) 2 uV (DX on) 4 uV (Normal) WFM (20 dB S/N, mono) 1.5 uV (DX on) 4 uV (Normal SSB (10 dB S+N/N) 0.25 uV (DX on) 0.5 uV (Normal) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | AM/SSB 7 KHz (-6 dB), 12 KHz (-60 dB) 4 KHz (-6 dB), 9 KHz (-60 dB) 2.3 KHz (-6 dB), 5 KHz (-60 dB) |
| Image rejection | HF: 70 dBWFM: 55 dB |
| AF output power / speaker | 1.25 W (Battery operation) at ?% distortion / 8 ohm3 W (9 VDC external) at ?% distortion / 8 ohm |
| External speaker connector | TRS «Minijack» (3.5 mm), 4-8 ohm |
MISCELLANEOUS
| Manufactured | India, 2005-20xx (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
