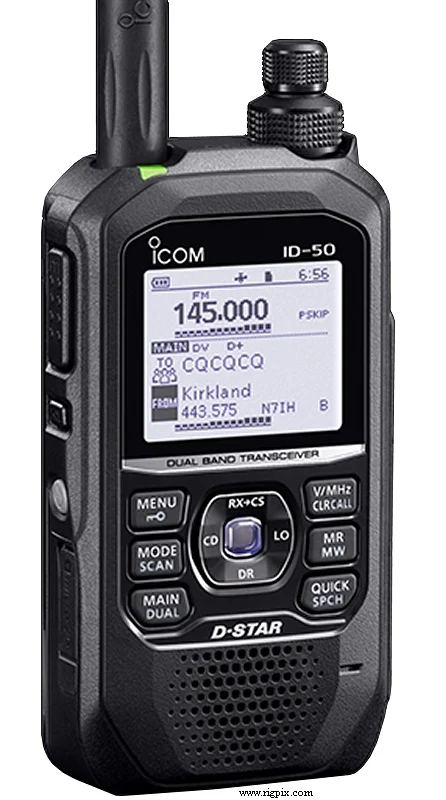

ID-50E
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 / 430-440 MHz RX: 76-108 / 108-174 / 375-479 MHz |
| Tuning steps | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz |
| Frequency stability | ±2.5 ppm @ @ 25°C (77°F) |
| Mode | TX: FM / NFM and DV (D-Star)RX: AM / NAM / FM / NFM / WFM and DV (D-Star) |
| Channels / memory management | 500 regular 4 call 25 scan edge pairs 100 skip 500 broadcast 2500 repeater lists 300 callsigns 300 GPS |
| Repeater shift / offset | Programmable |
| Power supply | 5.5-7.4 VDC (Depending on battery pack)or 10-16 VDC external |
| Current drain / power consumption | RX: 200-450 mATX: Max 2.5 A |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 58*111*28 mm (2.28*4.37*1.1") |
| Weight | 300 g (10.6 oz), with BP-272 and antenna |
| Other features | CTCSS/PL and DTCS. DR function. Terminal and access point mode. Built-in GPS. Picture sharing via app. Bandscope and waterfall. D-Star text messaging. MicroSD card slot. USB-C connector. Voice recorder. IPX7 rating. Twin RX |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | Ham bands FM/NFM: 0.18 uV (12 dB SINAD) DV: 0.2 uV (1% BER) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | FM >55 dB? NFM/DV >50 dB? |
| Image rejection | — |
| AF output power / speaker | 750 mW at ?% distortion / 8 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighMidLow 2Low 1S-Low 2 m:5 W2.5 W1 W500 mW100 mW 70 cm:5 W2.5 W1 W500 mW100 mW |
|---|---|
| 2 m | 5 W |
| 70 cm | 5 W |
| Modulation system | FM: Reactance modulation DV: GMSK reactance modulation |
| Max AM modulation (Factory set) | No AM |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -60 dBc (High, Mid)Better than -13 dBm (Low2, Low1, S-Low) |
| Microphone impedance / connector | 2.2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 2023-202x |
|---|---|
| Additional info | — |
| AD-92SMA BC-123S BC-167S BC-217S BC-228 BC-202IP2 BP-202IP3L BP-272 BP-273 BP-307 CP-12L CP-23L CS-50 FA-S270C HM-153LS HM-166LS HM-183LS HM-186LS HM-243LS HS-94 HS-95 HS-97 LC-202 MB-127 OPC-254L OPC-515L OPC-2006LS OPC-2144 RS-MS1A RS-MS3A RS-MS3W SP-40 ST-ID50A ST-ID50W | SMA-to-BNC adapter AC adapter. Straight plug type AC adapter AC adapter AC adapter for BC-202IP3L Desktop charger Multi-connectable desktop charger Li-Ion battery pack Battery case Li-Ion battery pack Cigarette lighter cable Cigarette lighter cable for BC-202IP2 Programming software Flexible antenna Earphone-microphone Earphone-microphone Speaker-microphone Speaker-microphone Speaker-microphone Earhook type headset Neck arm type headset Headset with throat microphone Carrying case Belt clip DC power cable DC power cable Plug adapter cable Plug adapter cable Android application Terminal mode/access point mode application Terminal mode/access point mode application Earphone Application software Application software |
