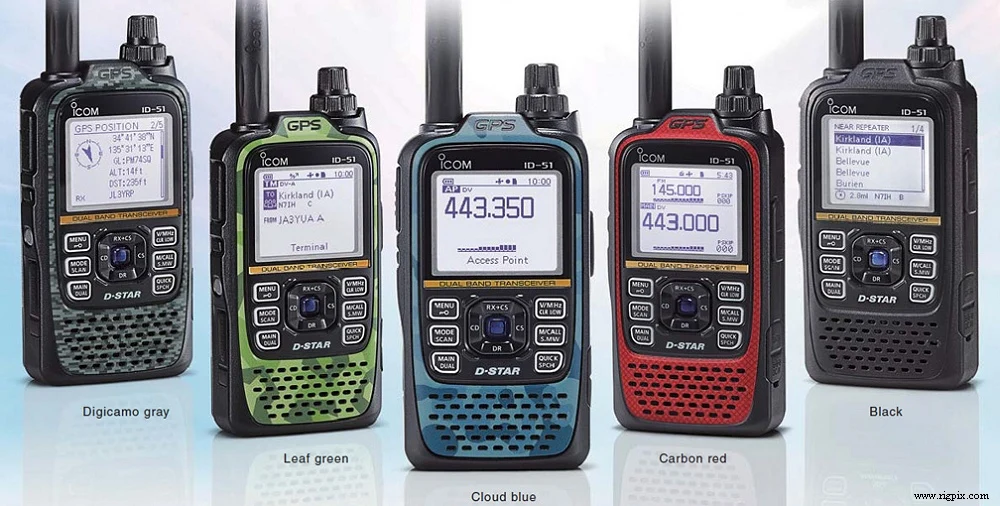

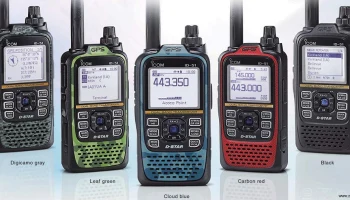

ID-51A Plus2
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | USA TX: 144-148 / 430-450 MHz RX: 0.52-1.710 / 76-108 / 108-174 / 380-479 MHz |
| Tuning steps | 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz |
| Frequency stability | Max? ppm |
| Mode | TX: FM / NFM and DV (GMSK: 4.8 kbps voice), Improved DR-modeRX: AM / FM / NFM / WFM and DV (GMSK: 4.8 kbps voice), Improved DR-mode |
| Channels / memory management | 1304 (Total) with alpha tags |
| Repeater shift / offset | ± |
| Power supply | 5.5-7.4 VDC (Depending on battery pack)or 10-16 VDC external |
| Current drain / power consumption | RX: 200-450 mATX: Max 2.5 A |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 58*105*26 mm (2.28*4.13*1.02") |
| Weight | 255 g (8.99 oz), with BP-271 and antenna) |

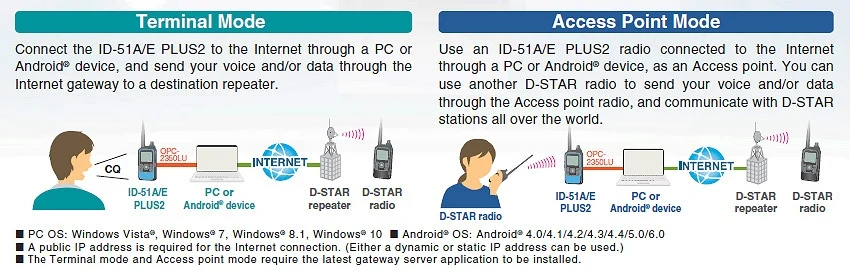

| Other features | D-Star concept. Built-in GPS with logging. CTCSS and DTCS Micro SD card slot. 128*104 dot-matrix display. Voice synthesizer. Voice memory. Voltage indicator. IPX7 waterproof. Twin RX (V/V, U/U & V/U). This special edition model has new «Terminal» and «Access point» modes, which enables connection to the D-Star network through the internet from areas without D-Star repeaters. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | FM/NFM: 0.18 uV (12 dB SINAD)DV: 0.28 uV (1% BER) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | FM 55 dB NFM/DV 50 dB |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighMidLow 2Low 1S-Low 2 m:5 W2.5 W1 W500 mW100 mW 70 cm:5 W2.5 W1 W500 mW100 mW |
|---|---|
| 2 m | 5 W |
| 70 cm | 5 W |
| Modulation system | — |
| Max AM modulation (Factory set) | No AM |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 2016-2020 (Discontinued) |
|---|---|
| Additional info | — |
| AD-92SMA BC-167SA BC-167SD BC-202 BP-271 BP-272Li BP-273 BP-307 CP-12L CP-19R CS-51 CT-17 FA-S270C HM-75LS HM-153LS HM-166LS HM-186LS HS-94 HS-95 HS-97 LC-179 MB-127 OPC-254L OPC-2006LS OPC-2144 OPC-2218LU SJ-1 SP-13 | BNC-to-SMA adapter Wall charger, 12 V/500 mA output Wall charger, 12 V/500 mA output Rapid desktop charger Li-Ion battery pack, 7.4 V/1200 mAh Li-Ion battery pack, 7.4 V/2000 mAh Battery case, 3*R6/AA High capacity Li-Ion battery pack. 7.2 V, 3150 mAh Cigarette lighter cable with noise filter Cigarette lighter cable with DC-DC converter Cloning software CI-V level converter VHF/UHF antenna Remote control speaker-microphone Durable-type earphone-microphone Light-type earphone-microphone Compact-type speaker-microphone Earphone-headset (OPC-2006LS required) Behind-the-head headset (OPC-2006LS required) Throat microphone (OPC-2006LS required) Carrying case Alligator-type belt clip DC power cable VOX plug adapter cable Slim L-type plug adapter Data communication cable, USB type Silicon jacket case Earphone (OPC-2144 required) |
