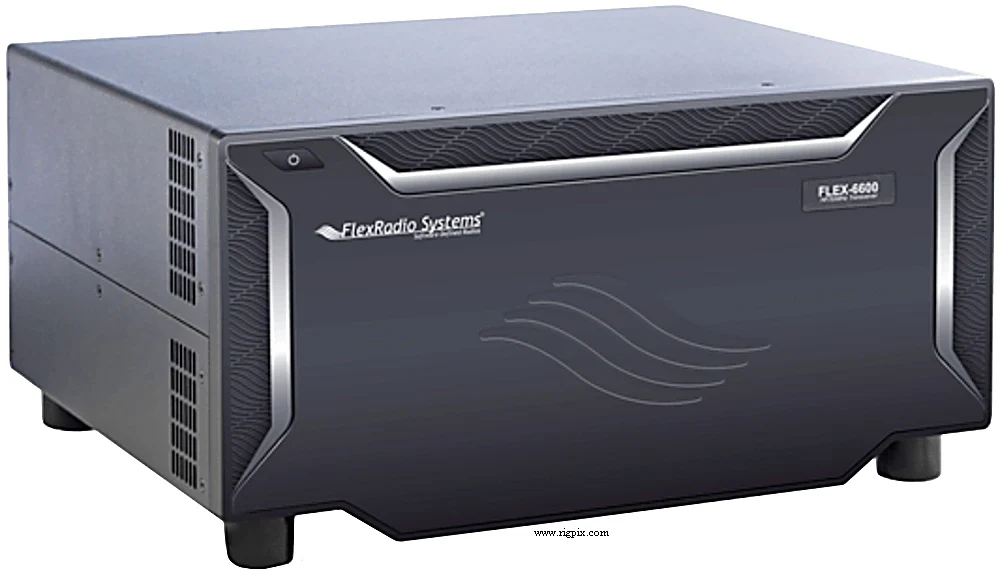

Flex-6600
Источник:
GENERAL
| Type | Amateur HF/VHF SDR transceiver |
|---|---|
| Frequency range | TX: 10-160 m + WARC / 6 m RX: 0.03-54 MHz |
| Tuning steps | Down to 1 Hz |
| Frequency stability | ±? ppm |
| Mode | AM / Sync-AM / FM / SSB / CW / RTTY (DV option) |
| Channels / memory management | Depending on software |
| Repeater shift / offset | Depending on software |
| Power supply | 13.8 VDC ±15% |
| Current drain / power consumption | RX: Max 2 ATX: Max 23 A |

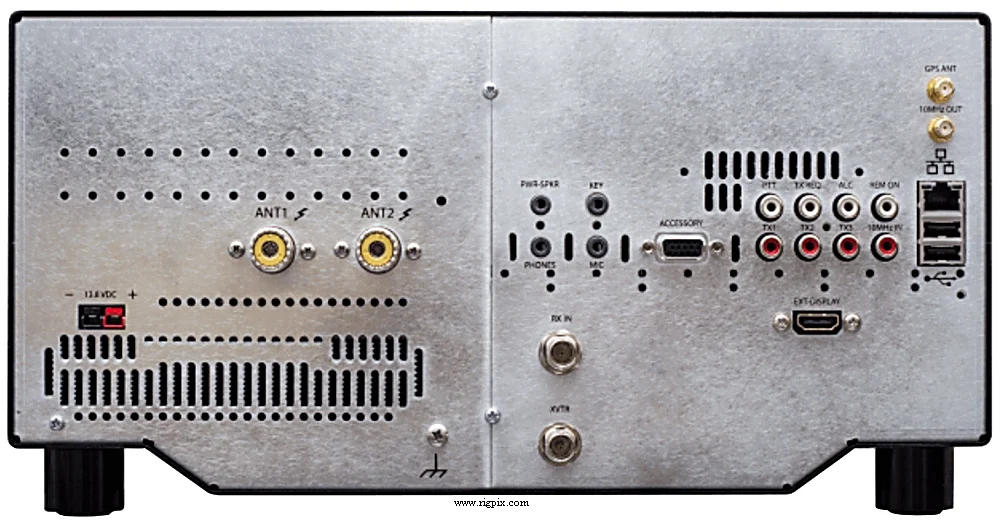

| Antenna impedance / connector | 50 ohm / Two SO-239. Two BNC (RX only). Two BNC (Transverter) |
| Dimensions (W*H*D) | 350*171*337 mm (14*6.74*13.25") |
| Weight | ? Kg (? lb) |
| Other features | Two USB2 ports. Four independent receivers. Four 14 MHz panafall displays. LAN port. Full duplex operation. Full QSK. Integrated remote operation. Synchronous diversity reception. |
RECEIVER SECTION
| Receiver system | Direct digital sampling ADC sampling rate: 245.76 Msps ADC resolution: 16 bit |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | No built-in amplifier or speaker |
| External speaker connector | No |
TRANSMITTER SECTION
| RF output power | 1-100 W (AM: 1-25 W) |
|---|---|
| Modulation system | Digital low power at carrier frequency |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | 600 ohm (Nominal) / ?-pin (3.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 2017-202x |
|---|---|
| Additional info | — |
