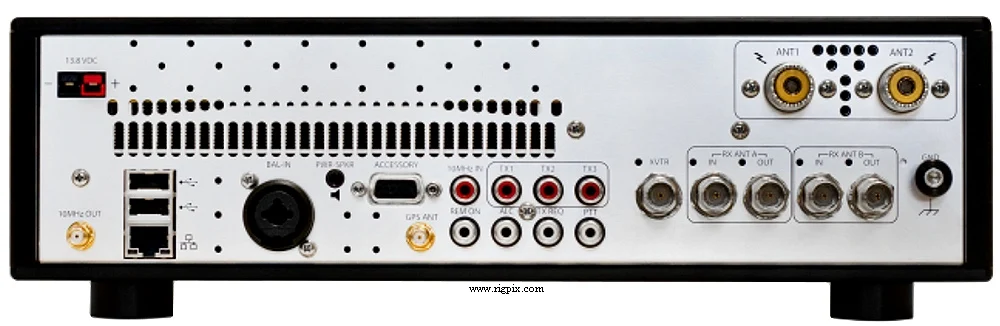

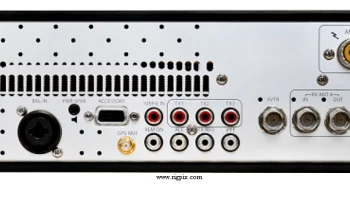

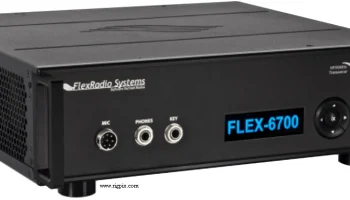

Flex-6700
Источник:
GENERAL
| Type | Amateur HF/VHF SDR transceiver |
|---|---|
| Frequency range | TX: 10-160 m + WARC / 6 m RX: 0.03-72 / 135-165 MHz |
| Tuning steps | Down to 1 Hz |
| Frequency stability | ±? ppm |
| Mode | AM / Sync-AM / FM / SSB / CW / RTTY |
| Channels / memory management | Depending on software |
| Repeater shift / offset | Depending on software |
| Power supply | 13.8 VDC ±15% |
| Current drain / power consumption | RX: Max 3 ATX: Max 23 A |
| Antenna impedance / connector | 50 ohm / Two SO-239. One BNC |
| Dimensions (W*H*D) | 330*102*305 mm (13*4*12") |
| Weight | 5.9 Kg (13 lb) |
| Other features | Panadapter: Max 14 MHz. Transverter port Two USB ports. Ethernet port. Built-in auto-ATU |
RECEIVER SECTION
| Receiver system | Direct digital sampling |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | Better than 100 dB |
| AF output power / speaker | ? W at ?% distortion /? ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | Max 100 W (AM: Max 25 W) |
|---|---|
| Modulation system | Digital low power at carrier frequency |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | 200-10000 ohm / 8-pin (Metal locking ring connector) and XLR |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 20xx-20xx |
|---|---|
| Additional info | — |
