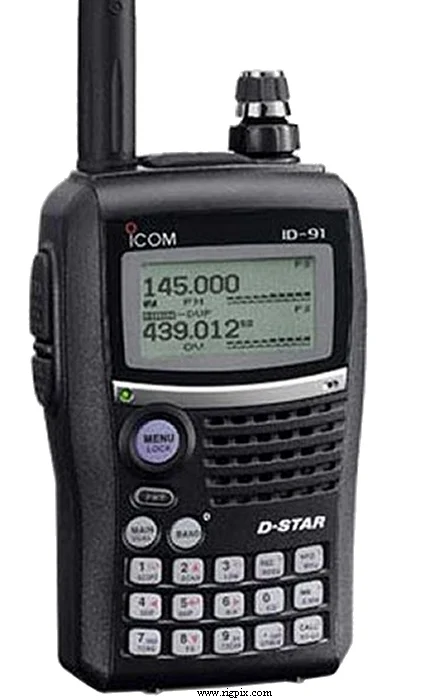

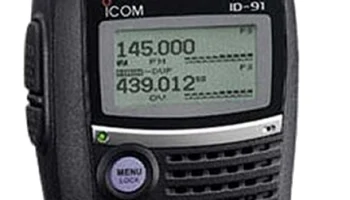

ID-91
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Japanese domestic market TX: 144-146 / 430-440 MHz RX: 0.5-999 MHz |
| Tuning steps | 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz |
| Frequency stability | Max? ppm |
| Mode | TX: FM / NFM and GMSK (4.8 kbps voice)RX: AM / FM / NFM and GMSK (4.8 kbps voice) |
| Channels / memory management | 1304 memories with alpha tags |
| Repeater shift / offset | ±? |
| Power supply | 7.4 VDC (Battery pack)or 10-16 VDC external |
| Current drain / power consumption | RX:? mATX: 0.8-2.1 A |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 58*103*24 mm (2.28*4.06*0.94") |
| Weight | 300 g (10.58 oz), without batteries and antenna |
| Other features | D-Star concept. CTCSS/PL and DTCS. Twin RX. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | — |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighLow 2 m:5 W500 mW 70 cm:5 W500 mW |
|---|---|
| 2 m | 5 W |
| 70 cm | 5 W |
| Modulation system | — |
| Max AM modulation (Factory set) | No AM |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 2006-200x (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
