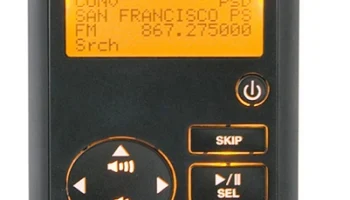

PSR-700
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 25-54 / 108-174 / 216-512 / 764-782 / 791-797 / 806-824 / 849-869 / 894-960 / 1240-1300 MHz |
| Tuning steps | 3.125 / 5 / 6.25 / 7.5 / 8.33 / 10 / 12.5 / 25 KHz |
| Frequency stability | ? ppm @ -10 to +60°C (14 to 140°F) |
| Mode | AM / FM |
| Channels / memory management | More than 10 million objects (With 2 GB SD card) 50 scanlists 7 NOAA weather channels 1 Skywarn scanlist Priority function 200 V-Scanner II configurations |
| Power supply | 2.4-3 VDC (Two R6 / AA alkaline or rechargeable batteries)or 5 VDC external |
| Current drain / power consumption | 120 mA (Squelched) |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 60*127*27 mm (2.36*5*1.06") |
| Weight | 190 g (6.7 oz), without antennas and batteries |
| Other features | 96*48 pixels dot matrix display. CTCSS/PL and DCS decoder. Trunking modes: Motorola, LTR, EDACS wide and narrow. Spectrum sweeper. USA RadioReference database. PC programmable. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 380.8 MHz 2nd IF: 21.4 MHz 3rd IF: 455 KHz |
|---|---|
| Sensitivity | AM (20 dB NQ) 108-136 MHz: 0.5 uV FM (12 dB SINAD) 25-54 MHz: 0.2 uV 137-174 MHz: 0.3 uV 216-300 MHz: 0.5 uV 300-406 MHz: 0.6 uV 406-512 MHz: 0.4 uV 764-960 MHz: 0.4 uV 1240-1300 MHz: 0.5 uV |
| Squelch sensitivity | 0.5 uV (Threshold) |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 280 mW at ?% distortion / 8 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | 2010-2012 (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
