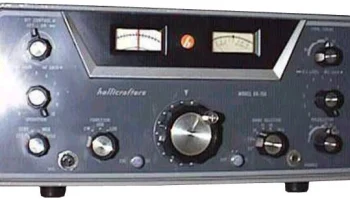

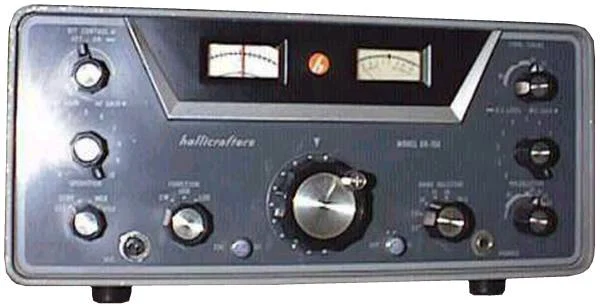

SR-150
Источник:
GENERAL
| Type | Amateur HF transceiver |
|---|---|
| Frequency range | TX: 10-80 m RX: 10-80 m |
| Tuning steps | Analog / continuous |
| Frequency stability | ±? ppm |
| Mode | SSB / CW |
| Channels / memory management | — |
| Repeater shift / offset | No |
| Power supply | Separate PSU (Mains or 12 VDC option) |
| Current drain / power consumption | RX:? mATX: Max? A |
| Antenna impedance / connector | ? ohm / ? |
| Dimensions (W*H*D) | 381*165*330 mm (15*6.5*13") |
| Weight | 7.94 Kg (17.5 lb) |
| Other features | — |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? W at ?% distortion /? ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | Pwr SSB (PEP):150 W (Input) CW:125 W (Input) |
|---|
SSB (PEP)
| CW | 125 W (Input) |
|---|---|
| Modulation system | — |
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | USA, 1961-1963 (Discontinued) |
|---|---|
| Additional info | 19 tubes. 12DQ6B finals |
| - | - |
