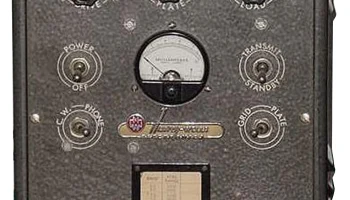

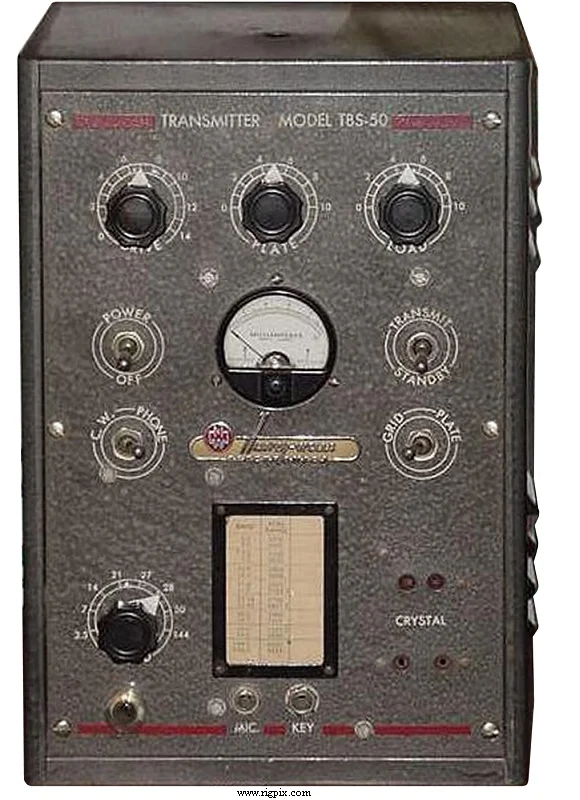

TBS-50
Источник:
GENERAL
| Type | Amateur HF/VHF transmitter |
|---|---|
| Frequency range | 10-80 m / 6 m / 2 m in eight bands 3.5: 3.5-4.0 MHz 7: 7.0-7.3 MHz 14: 14.0-14.4 MHz 21: 21.0-21.5 MHz 27: 26.16-27.43 MHz 28: 28.0-29.7 MHz 50 50.0-54.0 MHz 144: 144.0-148 MHz |
| 3.5 | 3.5-4.0 MHz |
| 7 | 7.0-7.3 MHz |
| 14 | 14.0-14.4 MHz |
| 21 | 21.0-21.5 MHz |
| 27 | 26.16-27.43 MHz |
| 28 | 28.0-29.7 MHz |
| 50 | 50.0-54.0 MHz |
| 144 | 144.0-148 MHz |
| Tuning steps | Channelized (VFO option) |
| Frequency stability | — |
| Mode | AM / CW |
| Channels / memory management | 1 XTAL controlled |
| Power supply | Mains |
| Current drain / power consumption | Max? W |
| Antenna impedance / connector | 50-500 ohm / Balanced |
| Dimensions (W*H*D) | 235*337*216 mm (9.25*13.25*8.5") |
| Weight | 7.71 Kg (17 lb) |
| Other features | — |
TRANSMITTER SECTION
| RF output power | Pwr AM:50 W (Input) CW:50 W (Input) |
|---|---|
| AM | 50 W (Input) |
| CW | 50 W (Input) |
| Modulation system | — |
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | USA, 1947-194x (Discontinued) |
|---|---|
| Additional info | New price 1948 in the US: $99.50 |
| - | - |
