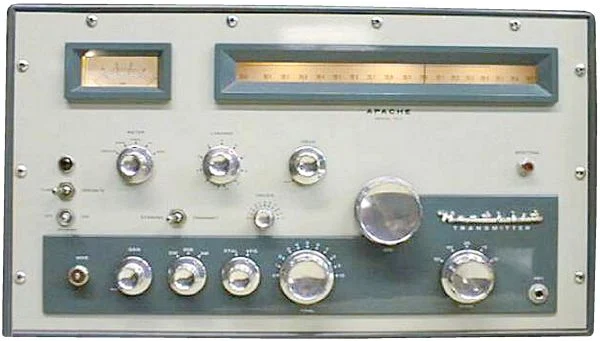

TX-1
Источник:
GENERAL
| Type | Amateur HF transmitter |
|---|---|
| Frequency range | 10 / 15 / 20 / 40 / 80 m |
| Tuning steps | Analog / continuous |
| Frequency stability | — |
| Mode | AM / SSB/ CW |
| Channels / memory management | — |
| Power supply | Mains: 115 VAC (USA) |
| Current drain / power consumption | Standby (AM/CW): 150 W Standby (SSB): 230 W TX (AM): 500 W (Peak) TX (SSB): 500 W (Peak) TX (CW): 420 W (Intermittent) |
| Antenna impedance / connector | 50-72 ohm / ? |
| Dimensions (W*H*D) | 495*295*406 mm (19.5*11.6*16") |
| Weight | ? Kg (? lb) |
| Other features | — |
TRANSMITTER SECTION
| RF output power | Pwr AM:~80 W (150 W input) SSB (PEP):~80 W (150 W input) CW:~100 W (180 W input) |
|---|---|
| AM | ~80 W (150 W input) |
SSB (PEP)
| CW | ~100 W (180 W input) |
|---|---|
| Modulation system | — |
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | USA, 1958-1964 (Discontinued) |
|---|---|
| Additional info | See also the companion receiver, the RX-1 «Mohawk» |
| - | - |
