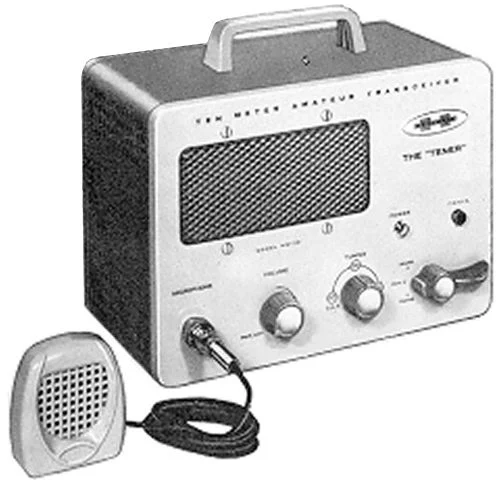

HW-19
Источник:
GENERAL
| Type | Amateur HF transceiver |
|---|---|
| Frequency range | TX: 10 m RX: 10 m |
| Tuning steps | Analog / continuous |
| Frequency stability | ±? ppm |
| Mode | AM |
| Channels / memory management | One XTAL controlled for TX |
| Repeater shift / offset | No |
| Power supply | Mains |
| Current drain / power consumption | RX:? WTX: Max? W |
| Antenna impedance / connector | 50 ohm / SO-239 |
| Dimensions (W*H*D) | 245*169*131 mm (9.65*6.65*5.16") |
| Weight | ? Kg (? lb) |
| Other features | — |
RECEIVER SECTION
| Receiver system | Superregenerative detector |
|---|---|
| Sensitivity | 1 uV (No reference) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? W at ?% distortion /? ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | 5 W (Input) |
|---|---|
| Modulation system | — |
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | USA, 1960-1962 (Discontinued) |
|---|---|
| Additional info | New price 1961: $39.95 |
| - | - |
