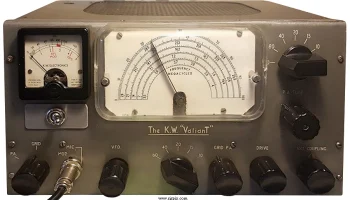

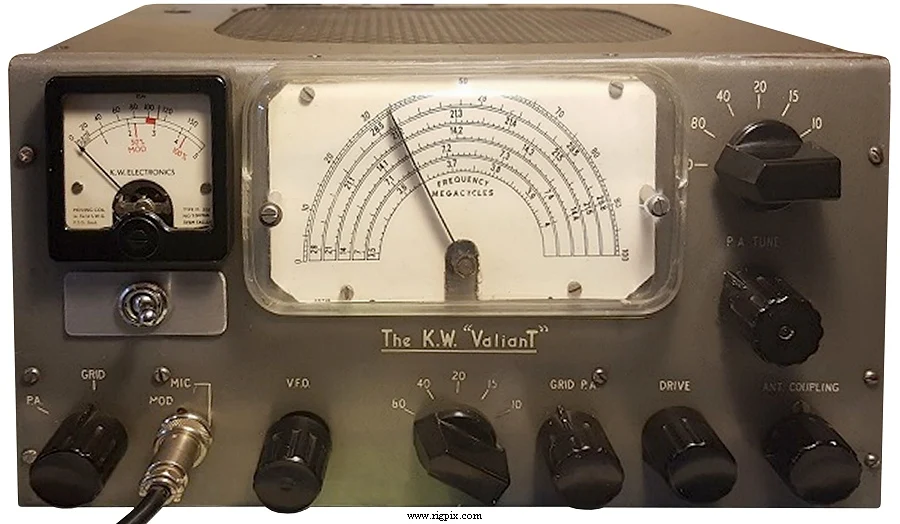

KW Valiant
Источник:
GENERAL
| Type | Amateur HF transmitter |
|---|---|
| Frequency range | 10-80 m or 10-160 m (Depending on version) |
| Tuning steps | Analog / continuous |
| Frequency stability | — |
| Mode | AM / CW |
| Channels / memory management | None |
| Power supply | Various (External PSU) |
| Current drain / power consumption | Max? W |
| Antenna impedance / connector | ? ohm / ? |
| Dimensions (W*H*D) | 305*159*241 mm (12*6.25*9.5") |
| Weight | 7.26 Kg (16 lb) |
| Other features | — |
TRANSMITTER SECTION
| RF output power | 10-80 m160 m AM:~25 W~8 W CW:? W? W |
|---|---|
| AM | ~25 W |
| CW | — |
| Modulation system | — |
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | England, 1959-196x (Discontinued) |
|---|---|
| Additional info | New price 1960 in England: £43.15 (10-160 m, wired and tested) |
| - | - |
