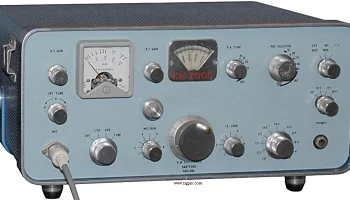

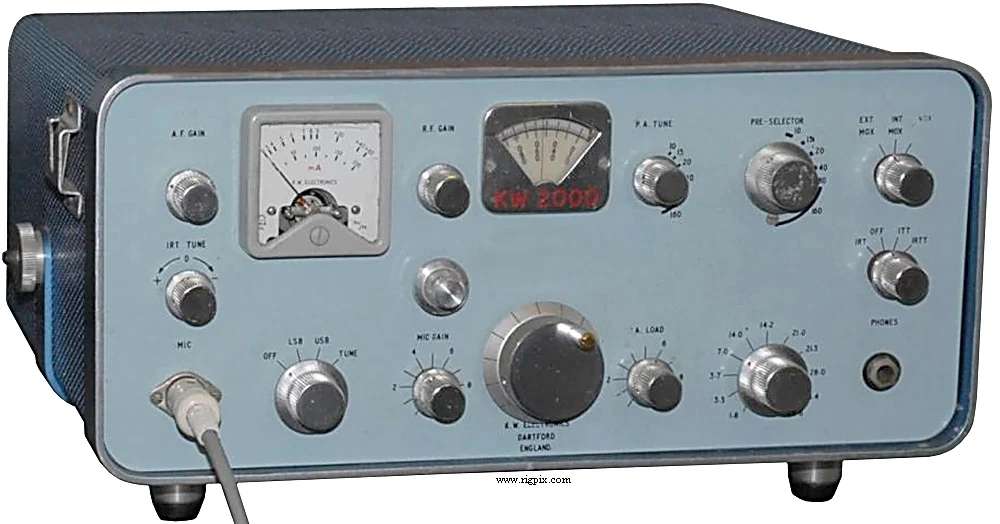

KW 2000
Источник:
GENERAL
| Type | Amateur HF transceiver |
|---|---|
| Frequency range | 10-160 m in 11 ranges |
| Tuning steps | Analog / continuous |
| Frequency stability | ±? ppm |
| Mode | SSB / CW |
| Channels / memory management | None |
| Repeater shift / offset | No |
| Power supply | Various (Separate PSU) |
| Current drain / power consumption | RX:? WTX:? W |
| Antenna impedance / connector | 50 ohm nominal / SO-239 |
| Dimensions (W*H*D) | ? mm (?") |
| Weight | ? Kg (? lb) |
| Other features | — |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? W at ?% distortion /? ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | Max Pwr SSB (PEP):~50 W (100 W input) CW:~50 W (100 W input) |
|---|
SSB (PEP)
| CW | ~50 W (100 W input) |
|---|---|
| Modulation system | — |
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | England, 1963-1964 (Discontinued) |
|---|---|
| Additional info | New price 1963 in Sweden: SEK 3185:- (Excl VAT) |
| - | - |
