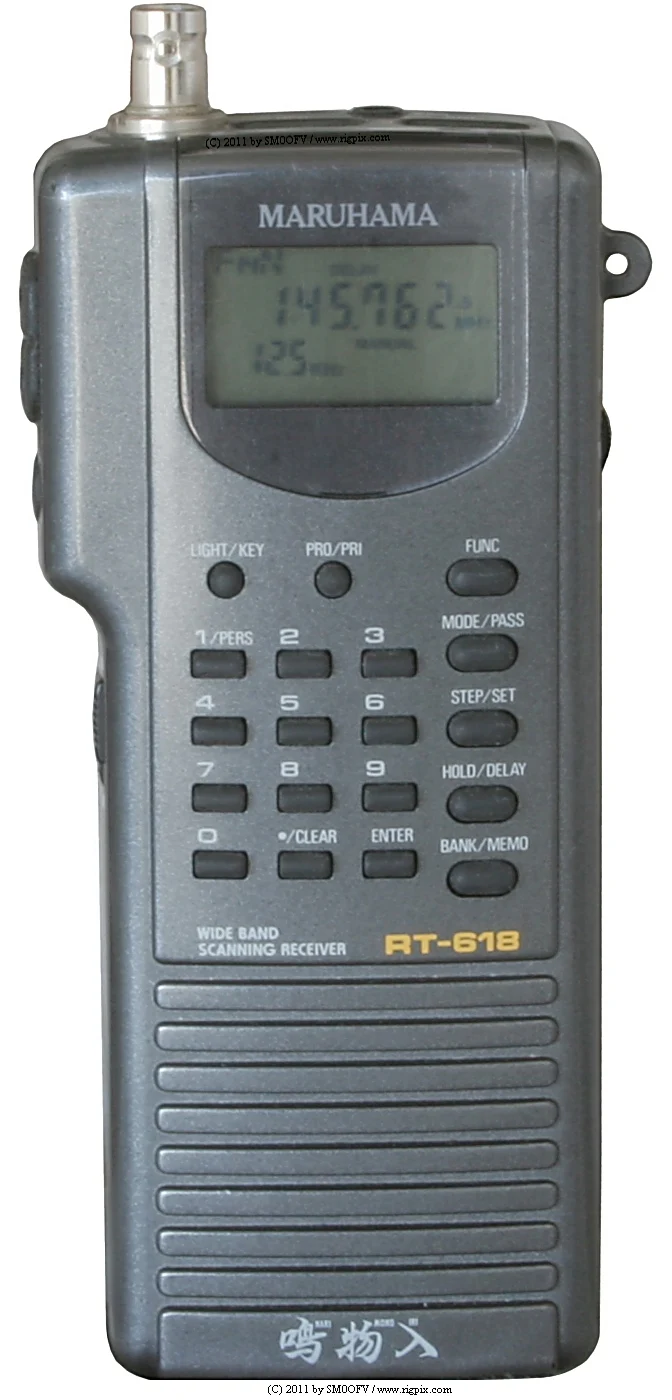

RT-618
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.5-1300 MHz |
| Tuning steps | 1 / 3 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 50 / 100 KHz |
| Frequency stability | — |
| Mode | AM / FM / WFM / SSB |
| Channels / memory management | 800 regular in 30 banks |
| Power supply | 4.8-6 VDC (Four LR6 / AA batteries)or 12 VDC external |
| Current drain / power consumption | 150 mA (Squelched) |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 70*150*30 mm (2.75*5.9*1.18") |
| Weight | 280 g (9.9 oz) |

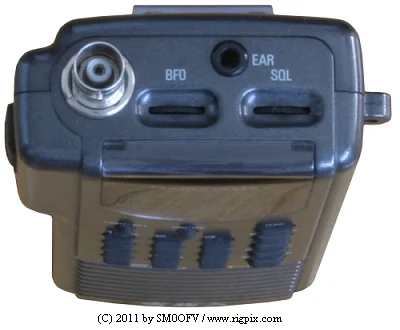

| Other features | BFO. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | AM: 1 uV (10 dB S/N) FM: 0.5 uV (12 dB SINAD) WFM: 1 uV (20 dB S/N) SSB: 1.5 uV (10 dB S/N) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | TS «Minijack» (3.5 mm) |
MISCELLANEOUS
| Manufactured | Japan, 1994-199x (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
