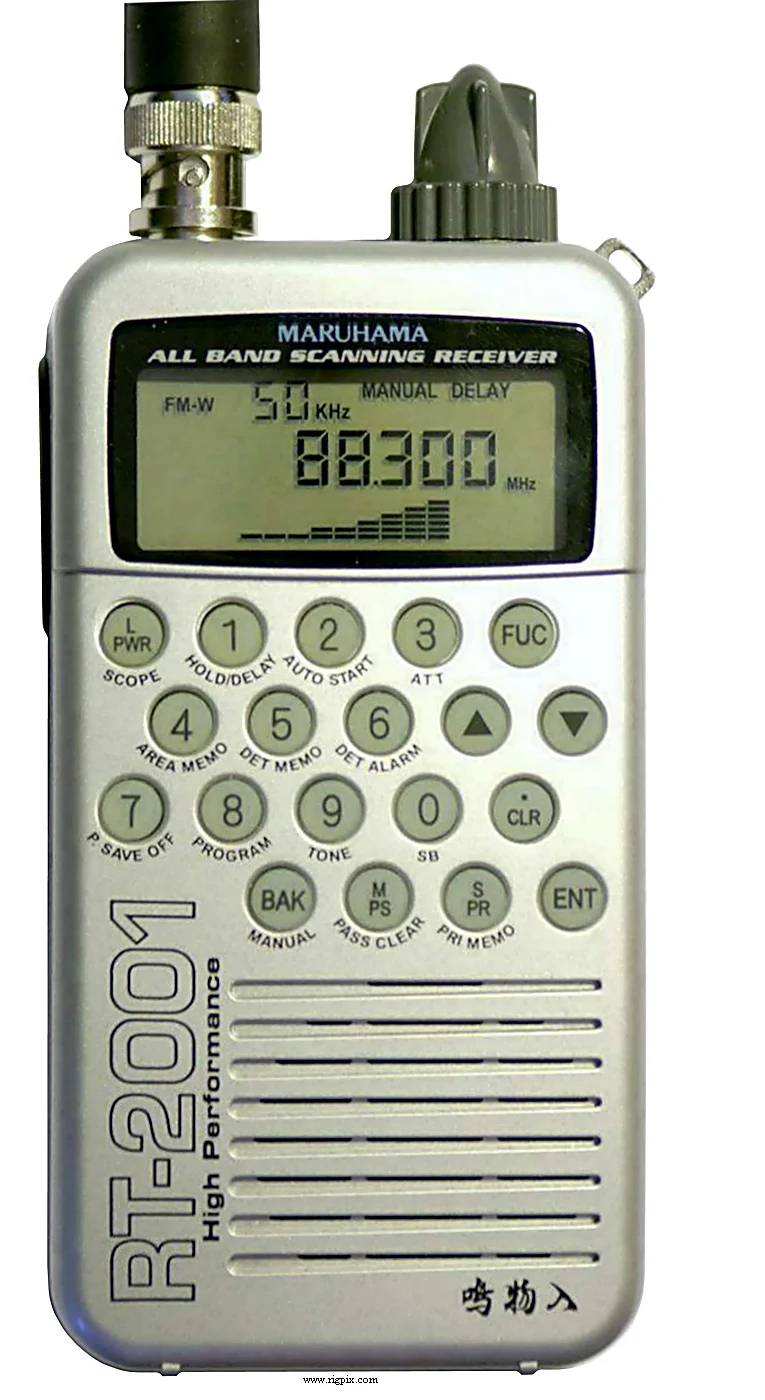

RT-2001
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.1-2200 MHz |
| Tuning steps | 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability | — |
| Mode | AM / FM / WFM |
| Channels / memory management | 600 regular in 3 banks 200 pass 10 priority |
| Power supply | 4.5 VDC (Three LR6 / AA batteries)or 12 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 62*117*30 mm (2.44*4.61*1.1") |
| Weight | 180 g (6.35 oz), without batteries |
| Other features | Attenuator. Speech inversion descrambler. Bug detector. 9 channel bandscope. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | AM (10 dB S/N) 0.5-2 MHz: 2.uV 2-1500 MHz: 1.5 uV FM (12 dB SINAD) 0.5-2 MHz: 1.5 uV 2-1500 MHz: 1 uV 1500-2000 MHz: 2.5 uV WFM (20 dB S/N) 2-1500 MHz: 2 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 90 mW at 10% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm) |
MISCELLANEOUS
| Manufactured | Japan, 20xx-20xx |
|---|---|
| Additional info | — |
| - | - |
