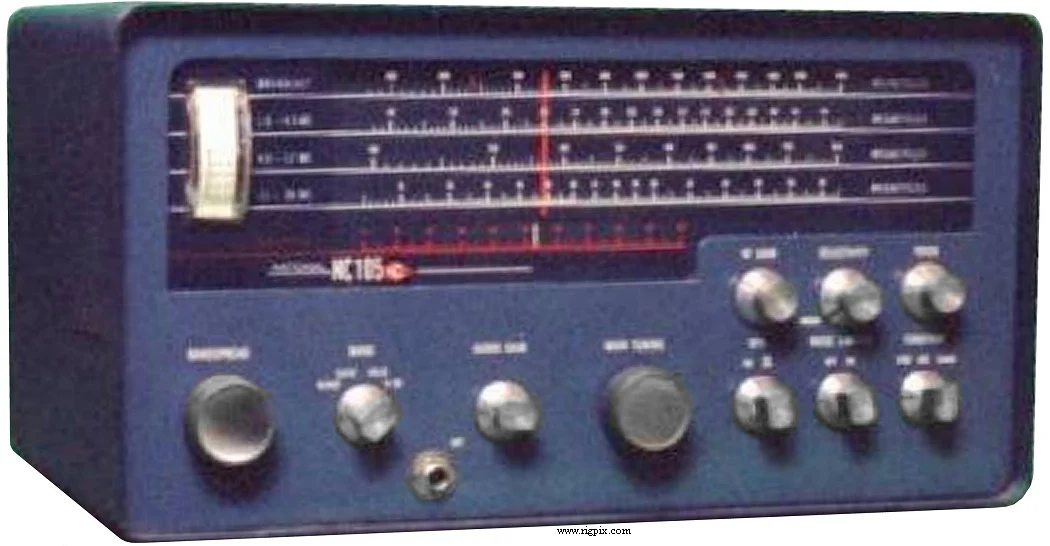

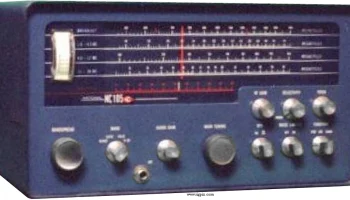

NC-105
Источник:
GENERAL
| Type | HF receiver |
|---|---|
| Frequency range | 0.5-30 MHz in four bands A: 0.55-1.6 MHz B: 1.6-4.5 MHz C: 4.0-12.0 MHz D: 11.0-30.0 MHz |
| A | 0.55-1.6 MHz |
| B | 1.6-4.5 MHz |
| C | 4.0-12.0 MHz |
| D | 11.0-30.0 MHz |
| Tuning steps | Analog / continuous |
| Frequency stability | — |
| Mode | AM / SSB / CW |
| Channels / memory management | None |
| Power supply | Mains: 105-125 VAC |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50-300 ohm / ? |
| Dimensions (W*H*D) | 343*194*219 mm (13.5*7.62*8.62 |
| Weight | 13.6 Kg (30 lb) |
| Other features | — |
RECEIVER SECTION
| Receiver system | Single conversion superheterodyne IF: 455 KHz |
|---|---|
| Sensitivity | — |
| Selectivity | Selectable 5 KHz to 500 Hz (-6 dB) |
| Image rejection | — |
| AF output power / speaker | ? W at ?% distortion / 3.2 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | USA, 1962-1963 (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
