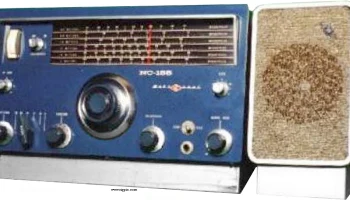

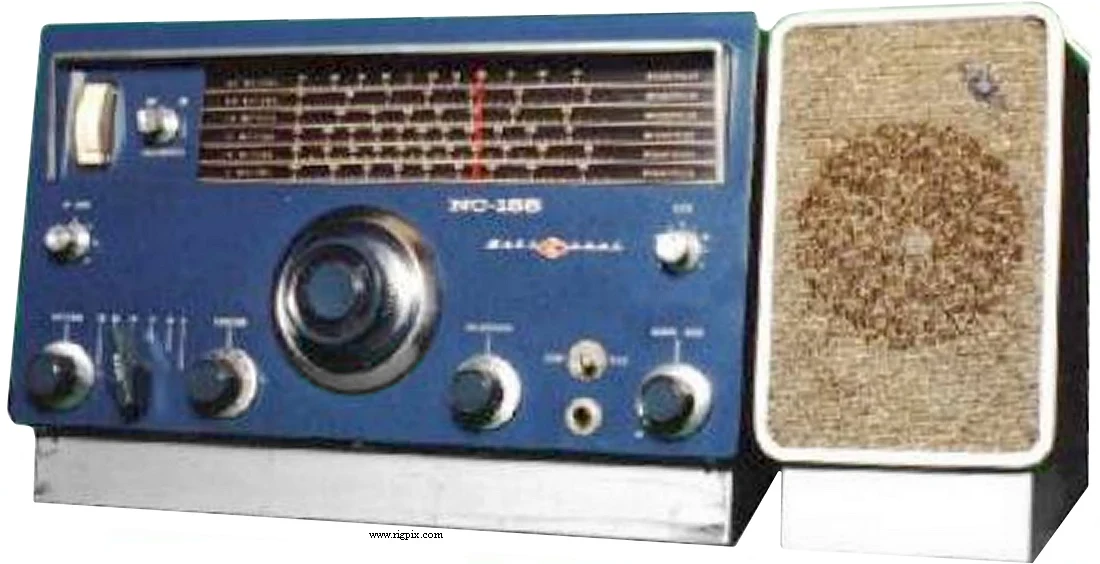

NC-155
Источник:
GENERAL
| Type | Amateur band HF receiver |
|---|---|
| Frequency range | 10-80 m / 6 m in six bands 80 m: 3.5-4.0 MHz 40 m: 7.0-7.3 MHz 20 m: 14.0-14.4 MHz 15 m: 21.0-21.5 MHz 10 m: 28.0-29.7 MHz 6 m: 50.0-54.0 MHz |
| 80 m | 3.5-4.0 MHz |
| 40 m | 7.0-7.3 MHz |
| 20 m | 14.0-14.4 MHz |
| 15 m | 21.0-21.5 MHz |
| 10 m | 28.0-29.7 MHz |
| 6 m | 50.0-54.0 MHz |
| Tuning steps | Analog / continuous |
| Frequency stability | Less than 1 KHz per 5 hours |
| Mode | AM / SSB / CW |
| Channels / memory management | None |
| Power supply | Mains: 105-205 VAC |
| Current drain / power consumption | Less than 70 W |
| Antenna impedance / connector | ? ohm / ? |
| Dimensions (W*H*D) | 397*219*229 mm (15.62*8.62*9 |
| Weight | 11.34 Kg (25 lb) |
| Other features | — |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 2.215 MHz 2nd IF: 230 KHz |
|---|---|
| Sensitivity | 1 uV (10 dB S/N) |
| Selectivity | Selectable 5 and 3 KHz and 600 Hz (-6 dB) |
| Image rejection | — |
| AF output power / speaker | 1.5 W at 10% distortion / No internal speaker |
| External speaker connector | 3.2 ohm |
MISCELLANEOUS
| Manufactured | USA, 1961-1964 (Discontinued) |
|---|---|
| Additional info | — |
| NTS-3B XCU-109 | Matching speaker Crystal calibrator |
