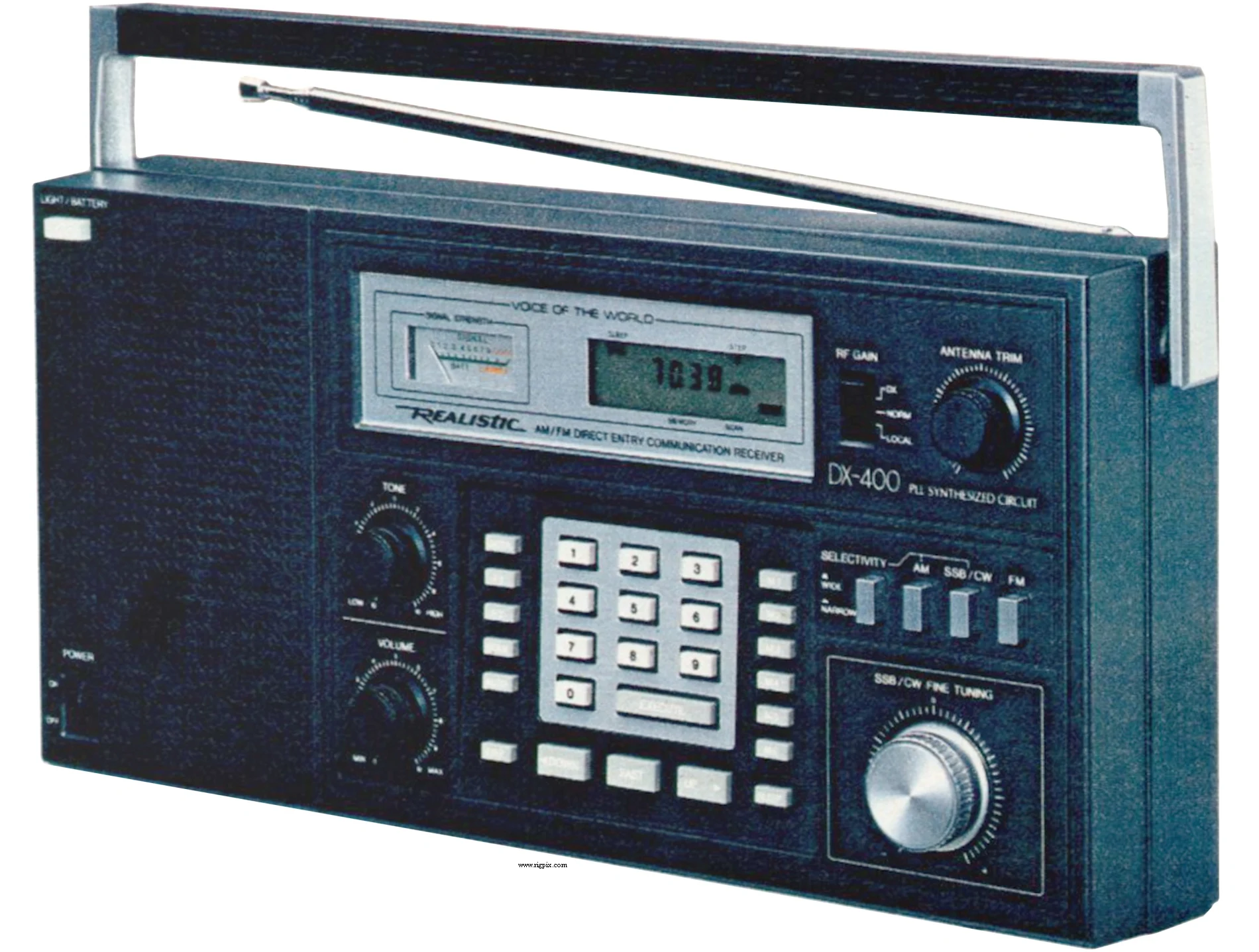

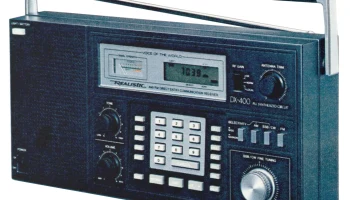

DX-400
Источник:
GENERAL
| Type | HF receiver |
|---|---|
| Frequency range | 0.15-30 / 87.4-108 MHz |
| Tuning steps | 1 / 3 KHz (AM / SSB / CW)50 / 100 KHz (WFM) |
| Frequency stability | — |
| Mode | AM / SSB / CW / WFM |
| Channels / memory management | 6 AM 6 WFM RAM storage with two R6 / AA battery backup |
| Power supply | 9 VDC (Six LR14 / C batteries) or mains: 120 VACor 12 VDC external |
| Current drain / power consumption | Max 13 W @ mainsMax 450 mA @ 13.8 VDC |
| Antenna impedance / connector | ? ohm / ?- / Telescopic whip- / Loopstick |
| Dimensions (W*H*D) | 320*152*89 mm (12.62*6*3.5") |
| Weight | ? Kg (? lb) |
| Other features | Fine tuning. 3-step RF gain. Sleep timer. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | AM (10 dB S/N) 1.7-30 MHz: 1 uV SSB (10 dB S+N/N) 0.15-0.52 MHz: 5 uV 1.7-30 MHz: 0.5 uV WFM (30 dB noise quieting) 87.4-108 MHz: 5 uV |
| Selectivity | Wide 6 KHz (-6 dB)12 KHz (-50 dB) Narrow 5 KHz (-6 dB)10 KHz (-50 dB) |
| Image rejection | — |
| AF output power / speaker | ? W at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | 1984-1984 (Discontinued) |
|---|---|
| Additional info | New price 1984 in the US: $299.95 |
| - | - |
