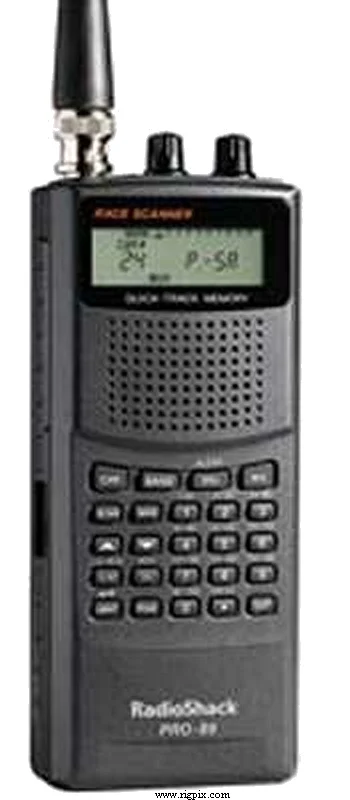

Pro-89
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | USA 29-54 / 108-174 / 380-512 / 806-824 / 849-869 / 894-960 MHz |
| Tuning steps | — |
| Frequency stability | — |
| Mode | AM / FM |
| Channels / memory management | 200 regular in 10 banks @ 25 channels per second Fast track memory |
| Power supply | 4.8-6 VDC (Four R6 / AA alkaline or NiCd batteries)or 9 VDC external |
| Current drain / power consumption | 75 mA (Squelched) |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 63*145*34 mm (2.48*5.71*1.34") |
| Weight | 210 g (7.4 oz) |
| Other features | — |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 257.5 MHz 2nd IF: 21.4 MHz 3rd IF: 455 KHz |
|---|---|
| Sensitivity | 29-54 MHz: 0.3 uV (20 dB S/N) 108-137 MHz: 1 uV (20 dB S/N) 137-960 MHz: 0.5 uV (20 dB S/N) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | ±10 KHz (-6 dB)±18 KHz (-50 dB) |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | China (By GRE), 2001-200x (Discontinued) |
|---|---|
| Additional info | FCC ID: AAO2000514 New price 2001 in the US: $169.99 New price 2002 in the US: $169.99 |
| - | - |
