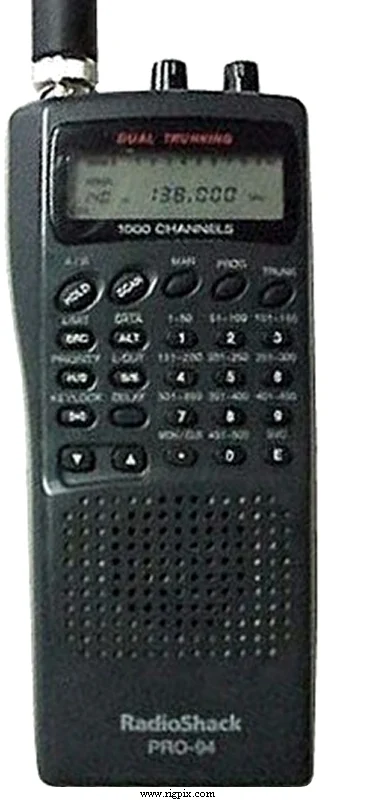

Pro-94
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 29-54 / 108-174 / 216-225 / 406-512 / 806-824 / 851-869 / 896-956 / 1240-1300 MHz |
| Tuning steps | VHF low/high: 5 KHzAirband: 12.5 KHz222 MHz: 5 KHzUHF: 12.5 KHz |
| Frequency stability | ? ppm @ -20 to +60°C (-4 to +140°F) |
| Mode | AM / FM |
| Channels / memory management | 1000 regular in 20 banks @ 50 channels per second 10 monitor 20 priority NOAA weather channels |
| Power supply | 4.8-6 VDC (Four R6 / AA alkaline or NiCd batteries)or 9 VDC external |
| Current drain / power consumption | 70-180 mA |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 66*153*44 mm (2.6*6.02*1.73") |
| Weight | 232 g (8.2 oz) |
| Other features | Dual trunking. Tracks Motorola I, II, I/II / GE/Ericsson EDACS. Hyperscan. Data skip. Weather alert. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 380.7 MHz 2nd IF: 10.85 MHz 3rd IF: 450 KHz |
|---|---|
| Sensitivity | AM (20 dB S/N) 108-137 MHz: 1.5 uV FM (20 dB S/N) 29-54 MHz: 0.5 uV 137-174 MHz: 0.5 uV 216-225 MHz: 0.6 uV 406-512 MHz: 0.5 uV 806-896 MHz: 0.6 uV 1240-1300 MHz: 4 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | 10 KHz (-6 dB)15 KHz (-50 dB) |
| Image rejection | — |
| AF output power / speaker | 350 mW at ?% distortion / 8 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | (By Uniden), 1999-200x (Discontinued) |
|---|---|
| Additional info | New price 1999 in the US: $299.99 New price 2000 in the US: $299.99 New price 2001 in the US: $299.99 New price 2002 in the US: $249.99 |
| - | - |
