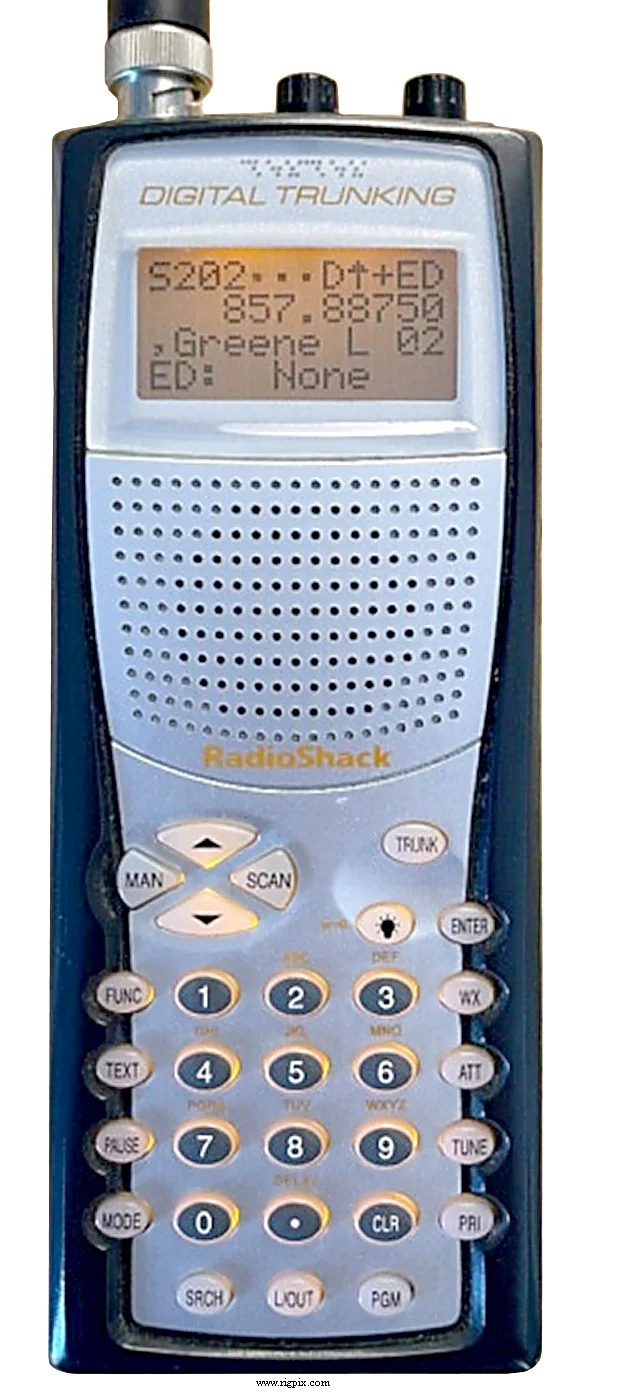

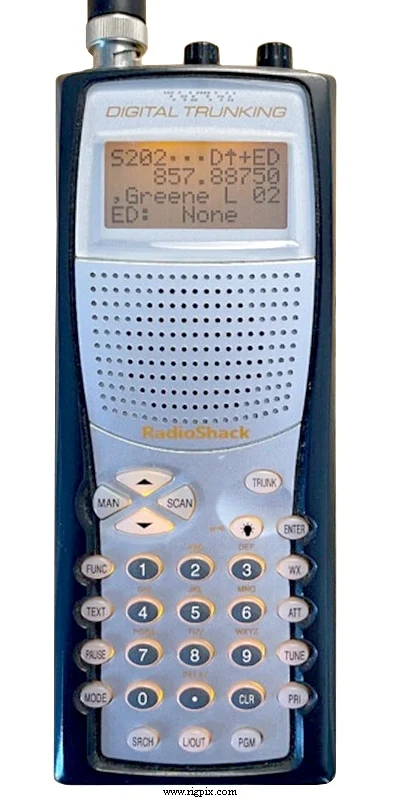

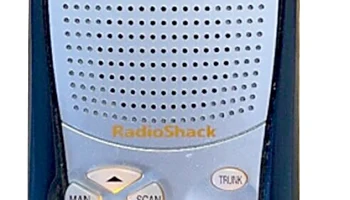

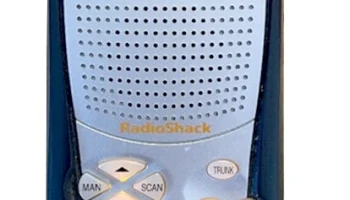

Pro-96
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | USA 25-54 / 108-174 / 216-225 / 406-512 / 806-824 / 849-869 / 894-960 / 1240-1300 MHz |
| Tuning steps | 5 / 6.25 / 7.5 / 12.5 KHz |
| Frequency stability | — |
| Mode | AM / FM / APCO P25 (Phase I) |
| Channels / memory management | 500 regular in 10 banks @ up to 60 channels per second 11 V-Scanner folders 6 search ranges 1 priority Alpha tags (12 characters) |
| Power supply | 4.8-6 VDC (Four R6 / AA alkaline or rechargeable batteries)or 9 VDC external |
| Current drain / power consumption | 90 mA (Squelched) |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 62*157*41 mm (2.44*6.19*1.75") |
| Weight | 250 g (8.8 oz), without antenna and batteries |
| Other features | Trunking: Motorola I/II, EDACS and P25. CTCSS/PL and DCS. Attenuator. Cloning. PC programmable. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 380.8 MHz 2nd IF: 21.4 MHz 3rd IF: 455 KHz |
|---|---|
| Sensitivity | AM (20 dB S/N) 25-54 MHz: 1 uV 108-137 MHz: 1 uV 137-174 MHz: 1.5 uV 216-225 MHz: 1.5 uV 406-512 MHz: 2 uV 806-960 MHz: 2 uV 1240-1300 MHz: 3 uV FM (20 dB S/N) 25-54 MHz: 0.3 uV 108-137 MHz: 0.3 uV 137-174 MHz: 0.5 uV 216-225 MHz: 0.5 uV 406-512 MHz: 0.5 uV 806-960 MHz: 0.7 uV 1240-1300 MHz: 0.7 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | AM/FM (Except AM 25-28 MHz) 10 KHz (-6 dB)36 KHz (-50 dB) AM (25-28 MHz) 10 KHz (-6 dB)12 KHz (-50 dB) |
| Image rejection | — |
| AF output power / speaker | 170 mW at 10% distortion / 8 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | China (By GRE), 2003-200x (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
