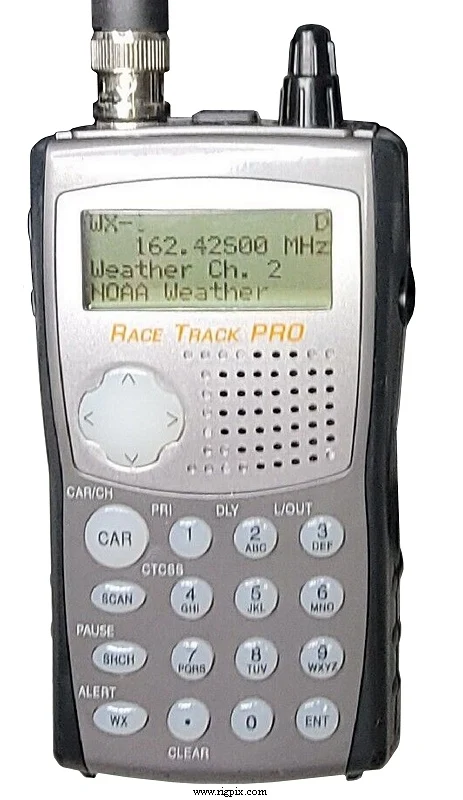

Pro-99
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 28-54 / 108-174 / 406-512 / 806-824 / 849-869 / 894-960 MHz (USA) |
| Tuning steps | 5 / 6.25 / 7.5 / 12.5 KHz (Depending on band) |
| Frequency stability | — |
| Mode | AM / FM |
| Channels / memory management | 500 regular in 10 banks @ up to 50 channels per second 1 priority 7 NOAA weather channels 6 preprogrammed search banks 1 user programmable search bank 50 skip Alpha tags |
| Power supply | 3.6-4.5 VDC (Three R6 / AA alkaline or rechargeable batteries)or 6 VDC external |
| Current drain / power consumption | 75 mA (Squelched) |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 67*122*31 mm (2.62*4.81*1.25") |
| Weight | 165 g (5.8 oz) |
| Other features | HyperScan. CTCSS/PL. Weather alert. Car number operation. Cloning. On-air programming. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 380.8 MHz 2nd IF: 45 MHz 3rd IF: 450 KHz |
|---|---|
| Sensitivity | AM (20 dB S/N) 108-137 MHz: 1 uV FM (20 dB S/N) 28-54 MHz: 0.3 uV 137-174 MHz: 0.5 uV 406-512 MHz: 0.5 uV 806-960 MHz: 0.5 uV |
| Selectivity | 20 KHz (-6 dB)36 KHz (-50 dB) |
| Image rejection | — |
| AF output power / speaker | 150 mW at 10% distortion / 8 ohm |
| External speaker connector | 3.5 mm |
MISCELLANEOUS
| Manufactured | China (By GRE), 2004-200x (Discontinued) |
|---|---|
| Additional info | FCC ID: ADV2000515 |
| - | - |
