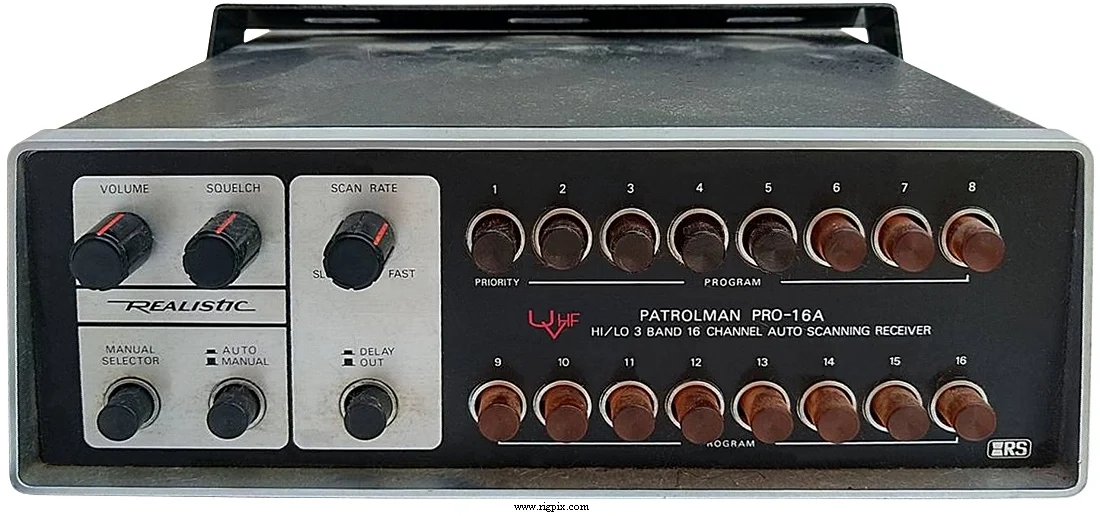

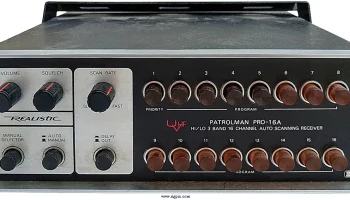

Pro-16A
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 30-50 / 148-174 / 450-512 MHz |
| Tuning steps | Channelized |
| Frequency stability | ?% |
| Mode | FM |
| Channels / memory management | 16 regular @ 10 to 20 channels per second (Variable) 1 priority 1.5 to 3 seconds scan resume delay 0.8 to 1.5 second priority cycle XTAL controlled |
| Power supply | Mains: 120 VAC (Fixed power cord)or 12-15 VDC (4-pin «Y»-jack) |
| Current drain / power consumption | Less than 830 mA @ 12 VDC |
| Antenna impedance / connector | 50-70 ohm / Two DIN41585 (Motorola) |
| Dimensions (W*H*D) | 241*89*254 mm (9.5*3.5*10") |
| Weight | ? Kg (? lb) |
| Other features | Tape out jack. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne (VHF) 1st IF: 10.7 MHz 2nd IF: 455 KHz Triple conversion superheterodyne (UHF) 1st IF: 44 MHz 2nd IF: 10.7 MHz 3rd IF: 455 KHz |
|---|---|
| Sensitivity | <1 uV (20 dB noise quieting) |
| Squelch sensitivity | Less than 1 uV (Threshold) |
| Noise figure | — |
| Selectivity | 27 KHz (-6 dB)50 KHz (-50 dB) |
| Image rejection | VHF: >35 dBUHF: >20 dB |
| AF output power / speaker | 2 W at ?% distortion /? ohm |
| External speaker connector | 1/4" jack |
MISCELLANEOUS
| Manufactured | Japan, 1975-1977 (Discontinued) |
|---|---|
| Additional info | New price 1976 in the US: $229.95 New price 1977 in the US: $229.95 |
| - | - |
