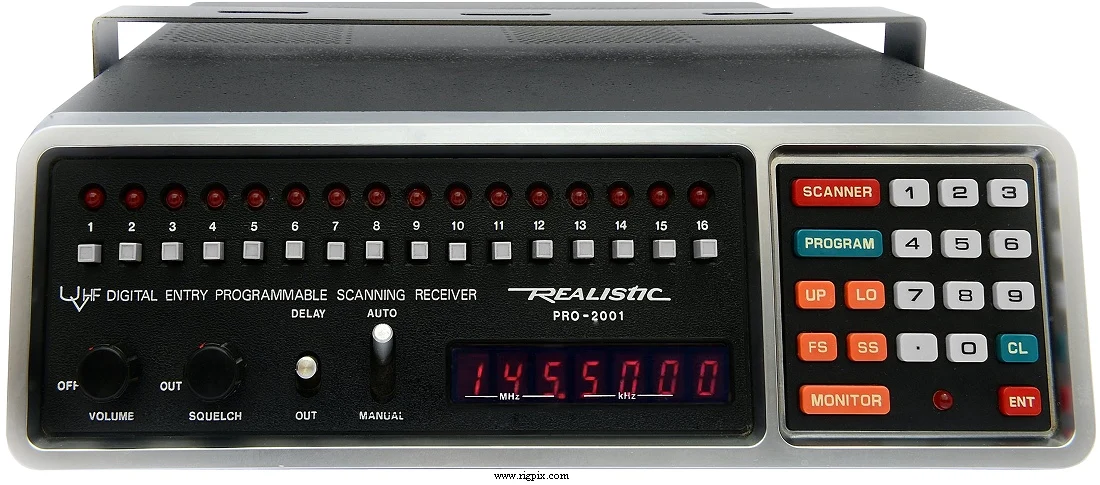

Pro 2001
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | USA 30-50 / 144-174 / 430-512 MHz |
| Tuning steps | VHF: 5 KHzUHF: 12.5 KHz |
| Frequency stability | — |
| Mode | FM |
| Channels / memory management | 16 regular @ 10 channels per second 1 monitor 1 search pair Switchable 2 second scan resume delay RAM storage with 9 V battery backup |
| Power supply | Mains: 120 VAC (Fixed power cord)or 12-15 VDC (Male 2-pin jack) |
| Current drain / power consumption | Less than 1.5 A @ 12 VDC |
| Antenna impedance / connector | 50-75 ohm / Two DIN41585 (Motorola) |
| Dimensions (W*H*D) | 276*86*259 mm (10.88*3.38*10.2") |
| Weight | 3.7 Kg (8.16 lb) |
| Other features | Tape out jack. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 10.7 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | VHF: 0.5 uV (20 dB S/N) UHF: 1 uV (20 dB S/N) |
| Squelch sensitivity | Less than 0.5 uV (Threshold) |
| Noise figure | — |
| Selectivity | 18 KHz (-6 dB)34 KHz (-50 dB) |
| Image rejection | — |
| AF output power / speaker | 2 W at ?% distortion /? ohm |
| External speaker connector | 1/4" jack |
MISCELLANEOUS
| Manufactured | Japan (By GRE), 1977-1980 (Discontinued) |
|---|---|
| Additional info | The 20-115A version is slightly improved with fever birdies. New price 1978 in the US: $399.95 New price 1979 in the US: $399.95 New price 1980 in the US: $399.95 |
| - | - |
