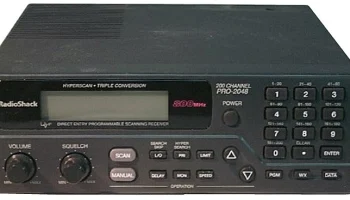

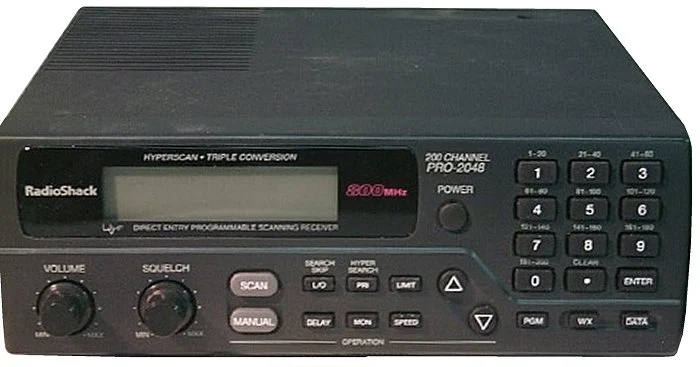

Pro 2048
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 29-54 / 108-174 / 406-512 / 806-824 / 851-869 / 896-956 MHz (USA) |
| Tuning steps | — |
| Frequency stability | — |
| Mode | AM / FM |
| Channels / memory management | 200 regular in 10 banks @ 50 channels per second 10 priority 10 monitor 20 skip NOAA weather channels |
| Power supply | 13.8 VDC |
| Current drain / power consumption | 230 mA (Squelched) |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 205*70*195 mm (8.07*2.76*7.68") |
| Weight | 680 g (1.5 lb) |
| Other features | Data skip. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 380.7 MHz 2nd IF: 10.85 MHz 3rd IF: 450 KHz |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? W at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | (By Uniden), 1999-200x (Discontinued) |
|---|---|
| Additional info | New price 1999 in the US: $229.99 |
| - | - |
