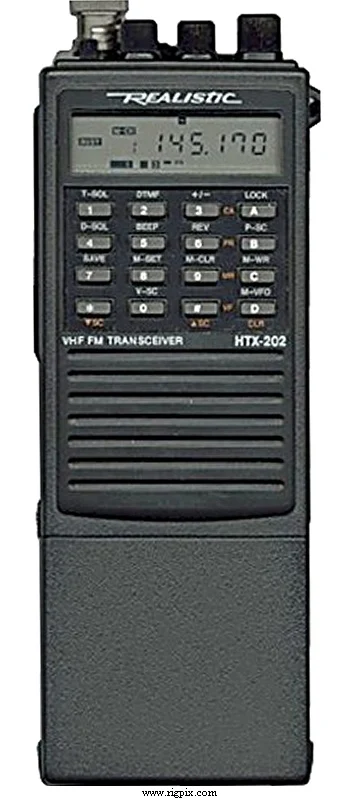

HTX-202
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | USA TX: 144-148 MHz RX: 144-148 MHz |
| Tuning steps | 5 / 10 / 15 / 20 / 25 / 50 / 100 KHz |
| Frequency stability | ±10 ppm @ -10 to +60° (14 to 140°F) |
| Mode | FM |
| Channels / memory management | 16 regular |
| Repeater shift / offset | Programmable |
| Power supply | 7.2-9 VDC (Six R6 / AA alkaline or NiCd batteries)or 7.2-13.8 VDC external |
| Current drain / power consumption | RX: 25-100 mATX: Max 1.1 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 65*117*37 mm (2.56*4.6*1.46") |
| Weight | 540 g (19.05 oz) |
| Other features | CTCSS/PL. DTMF. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 21.4 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.2 uV (12 dB SINAD) |
| Squelch sensitivity | 0.1 uV (Threshold) |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 500 mW (9 VDC) at 10% distortion / 8 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighLow 2 m:2.5-6 W1 W NB! The High output level depends on voltage / battery pack |
|---|---|
| 2 m | 2.5-6 W |
| Modulation system | — |
| Max FM deviation (Factory set) | ±4.5 KHz |
| Spurious emissions | Better than -70 dB |
| Microphone impedance / connector | 1.2 Kohm / ?-pin |
| Microphone input level | 4 mV |
MISCELLANEOUS
| Manufactured | 199x-199x (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
