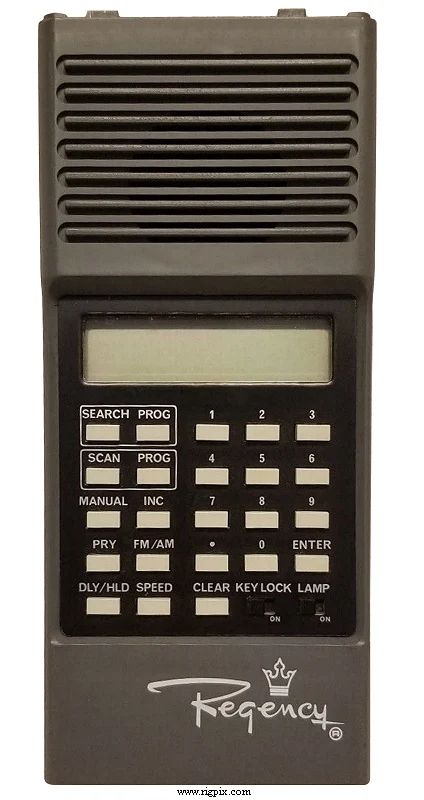

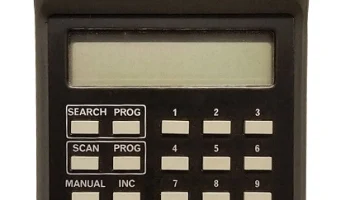

HX-2000
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 118-136 / 138-174 / 406-512 / 800-950 MHz (USA) |
| Tuning steps | 5 / 10 / 12.5 / 25 KHz |
| Frequency stability | — |
| Mode | AM / FM |
| Channels / memory management | 20 regular 1 priority 1 search edge pair RAM storage with internal rechargeable battery backup |
| Power supply | 4.8-6 VDC (Four R6 / AA batteries)or 6 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / Threaded |
| Dimensions (W*H*D) | 77*174*39 mm (3.03*6.85*1.54") |
| Weight | 425 g (15 oz), with batteries |
| Other features | — |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 21.4 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | AM (12 dB SINAD) 118-136 MHz: 0.5 uV FM (12 dB SINAD) 138-174 MHz: 0.5 uV 406-512 MHz: 0.7 uV 800-950 MHz: 0.7 uV |
| Selectivity | 15 KHz (-6 dB) |
| Image rejection | — |
| AF output power / speaker | 120 mW at 10% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 198x-198x (Discontinued) |
|---|---|
| Additional info | FCC ID: ARU7LMHX2000 New price, october 1985 in the US: $279.00 |
| - | - |
