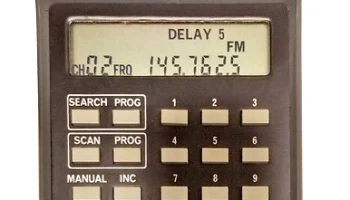

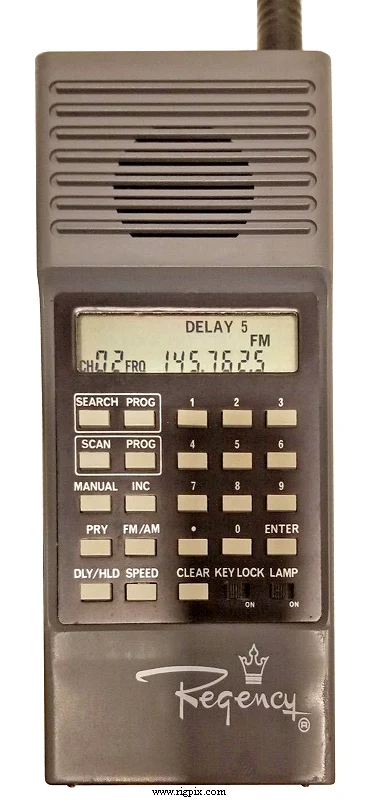

HX-2000E
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 60-90 / 118-136 / 138-174 / 406-495 MHz (Europe) |
| Tuning steps | 5 / 10 / 12.5 KHz |
| Frequency stability | — |
| Mode | AM / FM |
| Channels / memory management | 20 regular 1 priority 1 search edge pair RAM storage with internal rechargeable battery backup |
| Power supply | 4.8-6 VDC (Four R6 / AA batteries)or 6 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / Threaded |
| Dimensions (W*H*D) | 77*174*39 mm (3.03*6.85*1.54") |
| Weight | 425 g (15 oz), with batteries |
| Other features | — |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 21.4 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | AM (12 dB SINAD) 118-136 MHz: 0.5 uV FM (12 dB SINAD) 60-90 MHz:? uV 138-174 MHz: 0.5 uV 406-495 MHz: 0.7 uV |
| Selectivity | 15 KHz (-6 dB) |
| Image rejection | — |
| AF output power / speaker | 120 mW at 10% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 1984-198x (Discontinued) |
|---|---|
| Additional info | New price 1985 in Sweden: SEK 3775:- |
| - | - |
