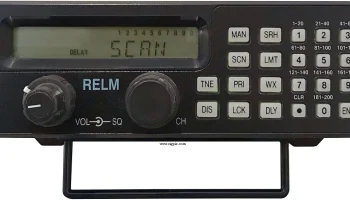

MS-200
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 29-54 / 118-174 / 406-520 / 806-960 MHz (Cellular blocked in USA) |
| Tuning steps | 5 KHz (VHF Low/High)12.5 KHz (VHF High/UHF)25 KHz (Air band) |
| Frequency stability | — |
| Mode | AM / FM |
| Channels / memory management | 200 regular in 10 banks @ up to 100 channels per second 100 search lockout 10 priority (One per bank) 8 NOAA weather channels 1 search limit pair Alpha tags (Up to 7 characters) Non-volatile storage |
| Power supply | 13.8 VDC ±15% (Male barrel jack, center positive) |
| Current drain / power consumption | 185-490 mA |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | ? mm (?") |
| Weight | ? Kg (? lb) |
| Other features | CTCSS/PL and DCS. Weather alert. PC programmable. Tape out jack. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF:? MHz 2nd IF:? KHz |
|---|---|
| Sensitivity | AM (10 dB S/N) 118-136 MHz: 0.7 uV FM (12 dB SINAD) 29-54 MHz: 0.4 uV 136-174 MHz: 0.5 uV 406-520 MHz: 0.5 uV 806-960 MHz: 0.5 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | 50 dB (Adjacent channel) |
| Image rejection | — |
| AF output power / speaker | 2 W at 10% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm), 8 ohm |
MISCELLANEOUS
| Manufactured | 1997-199x (Discontinued) |
|---|---|
| Additional info | FCC ID: ARUSMS200 |
