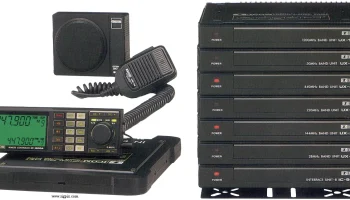

IC-900A
Источник:
GENERAL
| Type | Modular amateur HF/VHF/UHF transceiver system |
|---|---|
| Frequency range | USA TX: 140.1-150 / 440-450 MHz RX: 138-174 / 440-450 MHz (With band modules UX-29A and UX-49A) |
| Tuning steps | 5 / 10 / 15 / 20 / 25 KHz (Except UX-129A)10 / 20 KHz (With UX-129A) |
| Frequency stability | ±10 ppm @ -10 to +60°C (14 to 140°F) |
| Mode | FM |
| Channels / memory management | 10 regular per band 1 call per band 1 programmed scan pair |
| Repeater shift / offset | Depending on band units |
| Power supply | 13.8 VDC ±15% |
| Current drain / power consumption | RX: 0.7-1.7 A (Main + sub band)TX: 1.5-9.5 A (Check the service manual for band unit details) |
| Antenna impedance / connector | 50 ohm / SO-239 (N-jack for UX-129A) |
| Dimensions (W*H*D) | Controller: 150*50*25 mm (5.91*1.97*0.98") Interface A: 177*25*177 mm (6.97*0.98*6.97") Interface B: 177*25*192 mm (6.97*0.98*7.56") (Check the service manual for band unit details) |
| Weight | Controller: 200 g (7.06 oz) Interface A: 500 g (1.1 lb) Interface B: 900 g (1.98 lb) (Check the service manual for band unit details) |
| Other features | CTCSS/PL encoder. Twin RX. |
RECEIVER SECTION
| Receiver system | Check the service manual for band unit details |
|---|---|
| Sensitivity | Check the service manual for band unit details |
| Selectivity | Check the service manual for band unit details |
| Image rejection | Check the service manual for band unit details |
| AF output power / speaker | 2.4 W at ?% distortion / No internal speaker |
| External speaker connector | 3.5 mm, 4-8 ohm |
TRANSMITTER SECTION
| RF output power | HighLowBand unit 10 m:10 W1 WUX-19A 6 m:10 W1 WUX-59A 2 m:25 W5 WUX-29A 2 m:45 W5 WUX-29H 70 cm:25 W5 WUX-49A 1.25 m:25 W5 WUX-39A 23 cm:10 W1 WUX-129A |
|---|---|
| 10 m | 10 W |
| 6 m | 10 W |
| 2 m | 25 W |
| 2 m | 45 W |
| 70 cm | 25 W |
| 1.25 m | 25 W |
| 23 cm | 10 W |
| Modulation system | Variable reactance frequency modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1987-1988 (Discontinued) |
|---|---|
| Additional info | New price 1989 in the US: $569.95 |
| CF-11 HS-15 HS-15SB IC-PS30 MB-21 SP-8 SP-10 UT-28 UT-29 UX-19A UX-29A UX-29A UX-29H UX-29H UX-39A UX-49A UX-49A UX-59A UX-129A | Cooling fan kit Flexible mobile microphone Switch box AC power supply. 13.8 VDC, max 25 A Remote controller bracket External speaker External speaker DCS unit Tone squelch unit 10 m band unit, 10 W 2 m band unit, 25 W (USA and Asia) 2 m band unit, 25 W (Australia) 2 m band unit, 45 W (USA and Asia) 2 m band unit, 45 W (Australia) 1.25 m (220 MHz) band unit, 25 W 70 cm band unit, 25 W (USA) 70 cm band unit, 25 W (Australia and Asia) 6 m band unit, 10 W 23 cm band unit, 10 W |
