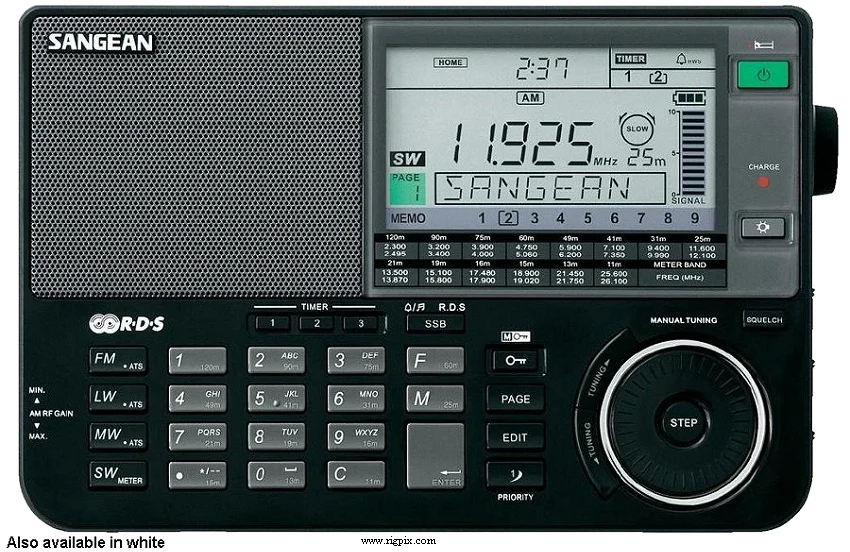

ATS-909X
Источник:
GENERAL
| Type | HF/VHF receiver |
|---|---|
| Frequency range | 0.153-30 / 87.5-108 MHz |
| Tuning steps | — |
| Frequency stability | — |
| Mode | AM / SSB / CW / WFM (Stereo with headphones) |
| Channels / memory management | 406 regular with alpha tags Non-volatile EEPROM storage |
| Power supply | 4.8-6 VDC (Four LR6 / AA batteries)or 9 V AC or DC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50-75 ohm /? or telescopic whip |
| Dimensions (W*H*D) | 208*135*41 mm (8.19*5.32*1.61") |
| Weight | 735 g (1.62 lb), without batteries |
| Other features | World clock with alarm. RF gain. IF-DSP. 12 segment signal indicator. Built-in battery charging circuit. No VFO chuffing on this model. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF:? MHz 2nd IF:? KHz |
|---|---|
| Sensitivity | — |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Taiwan, 2010-20xx |
|---|---|
| Additional info | — |
| - | - |
