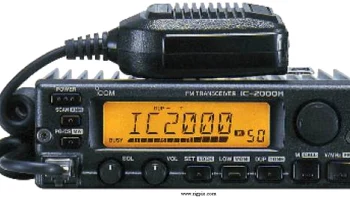

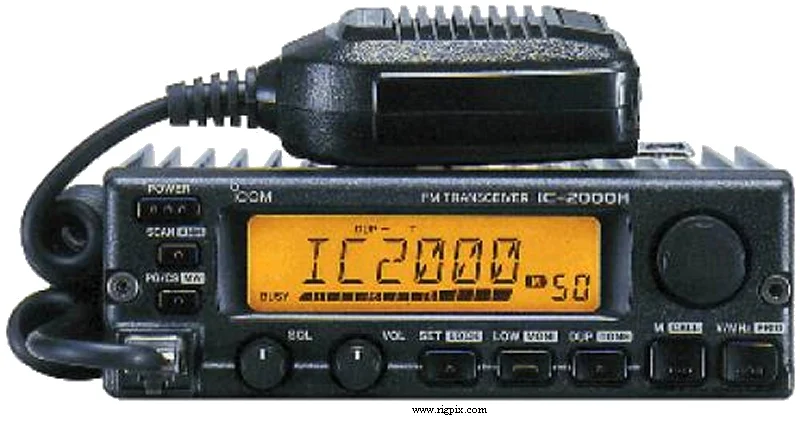

IC-2000H
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 MHz RX: 118-174 MHz USA TX: 144-148 MHz RX: 118-174 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability | ±? ppm @ -10 to +60°C (14 to 140°F) |
| Mode | TX: FMRX: AM/FM |
| Channels / memory management | 50 regular with alpha tags 1 call 3 scan edge pairs Priority watch Non-volatile EEPROM storage |
| Repeater shift / offset | ±0.005 to 20 MHz in 5 KHz increments |
| Power supply | 13.8 VDC ±15% |
| Current drain / power consumption | RX: 0.8 to 1 ATX: 4 to 10.5 A |

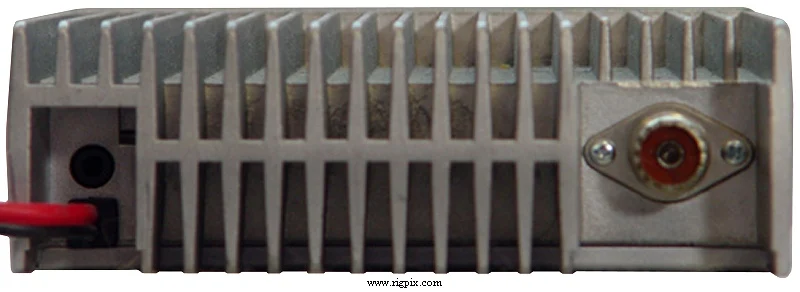

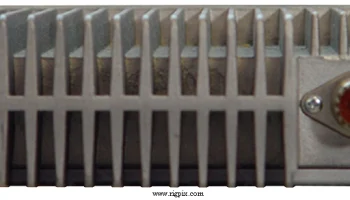

| Antenna impedance / connector | 50 ohm / SO-239 |
| Dimensions (W*H*D) | 150*50*151 mm (5.91*1.97*5.94") |
| Weight | 1.2 Kg (2.65 lb) |
| Other features | CTCSS/PL encoder. Dimmer. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 17.2 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.18 uV (12 dB SINAD) |
| Selectivity | 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | >60 dB |
| AF output power / speaker | 2.4 W at 10% distortion / 8 ohm |
| External speaker connector | 3.5 mm |
TRANSMITTER SECTION
| RF output power | HighMidLow 2 m:50 W10 W5 W |
|---|---|
| 2 m | 50 W |
| Modulation system | Variable reactance frequency modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -55 dB |
| Microphone impedance / connector | 600 ohm / 8-pin (Modular) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1994-1997 (Discontinued) |
|---|---|
| Additional info | New price 1995 in Sweden: SEK 3990:- |
| HM-77 HM-78 HM-79 HM-95 HM-96 HM-97 IC-PS30 OPC-346 OPC-347 SP-7 SP-10 SP-12 UT-85 UT-101 | Hand microphone with DTMF pad Hand microphone with up/down buttons Hand microphone with up/down buttons and 1750 Hz tone call Hand microphone with DTMF pad Hand microphone Hand microphone with up/down buttons and 1750 Hz tone call AC power supply. 13.8 VDC, 25 A DC power cable. 3 m (9.8 ft) DC power cable. 7 m (23 ft) External speaker External speaker External speaker Tone squelch unit with tone scan DTMF unit |
