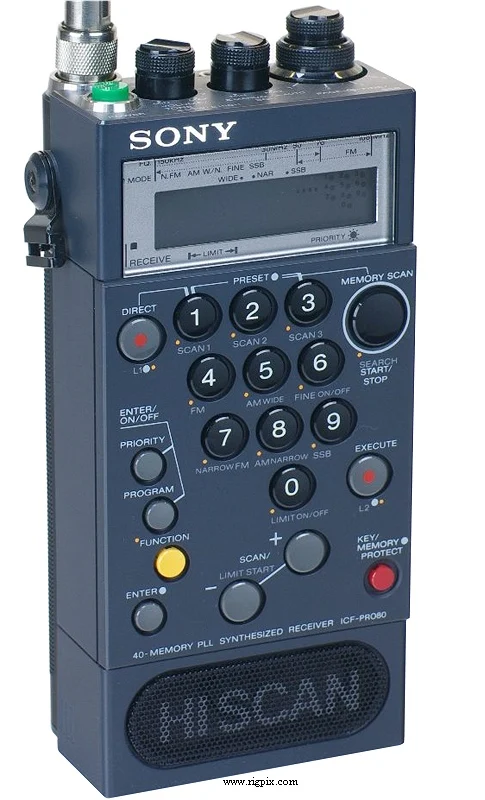

ICF-Pro 80
Источник:
GENERAL
| Type | HF/VHF receiver |
|---|---|
| Frequency range | 0.15-108 MHz (Also 115.15-223 MHz with the supplied FRQ-80 converter) |
| Tuning steps | LW: 3 KHzMW: 9 or 10 KHz (Depending on ssetting)1.6-76 MHz: 5 KHzWFM: 50 KHz |
| Frequency stability | — |
| Mode | AM / FM / SSB / WFM |
| Channels / memory management | 40 regular |
| Power supply | 4.8-6 VDC (Four LR6 / AA alkaline batteries or BP-23 NiCd pack)or 6 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / TNCInternal ferrite bar for MW |
| Dimensions (W*H*D) | 90*182*50 mm (3.54*7.16*1.97") |
| Weight | 650 g (1.43 lb), with batteries and antenna |
| Other features | — |
RECEIVER SECTION
| Receiver system | Single conversion superheterodyne (WFM) IF:? MHz Double conversion superheterodyne (AM/SSB) 1st IF:? MHz 2nd IF:? KHz |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 400 mW at 10% distortion / 8 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 1987-199x (Discontinued) |
|---|---|
| Additional info | FCC ID: AK896AICFPRO80 |
| AC-D4 AN-3 BP-23 DCC-120 DCC-127A DCC-240 EBP-6 RK-69A | AC power adapter VHF antenna Rechargeable battery pack Car battery cord Car battery cord Car battery cord Battery case Connecting cord (Miniplug to miniplug) |
