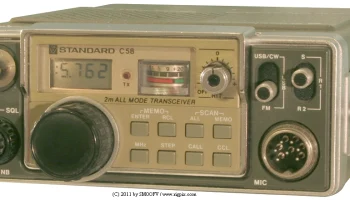

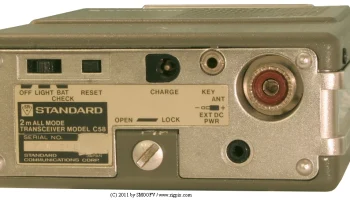

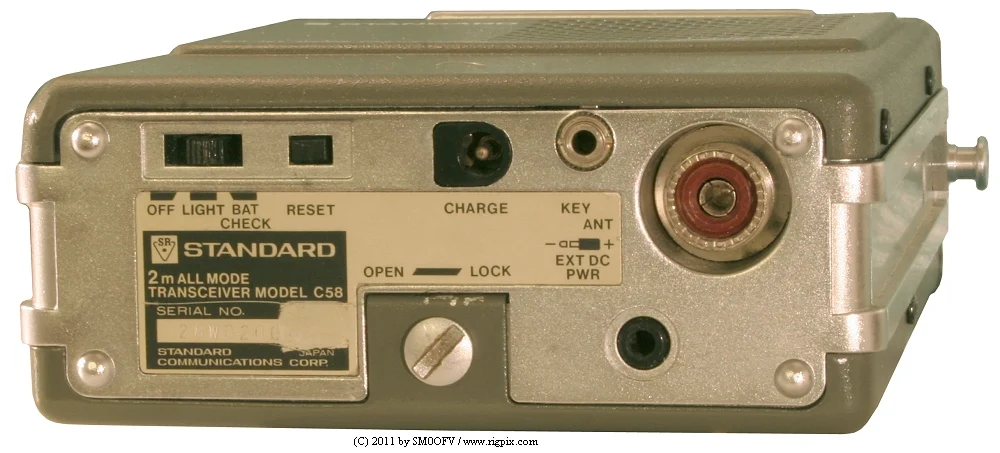

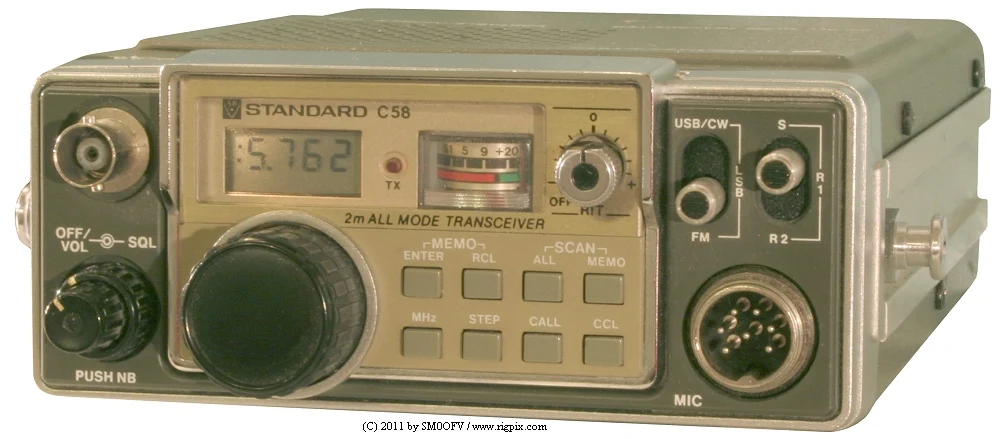

C-58
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 MHz RX: 144-146 MHz USA TX: 144-148 MHz RX: 144-148 MHz |
| Tuning steps | 100 Hz, 1 / 5 /12.5 / 25 KHz |
| Frequency stability | ±50 Hz after 60 minutes warmup @ room temperature |
| Mode | FM / USB / CW |
| Channels / memory management | 5 regular |
| Repeater shift / offset | ±600 KHz |
| Power supply | 9.6-16 VDC (Ten LR6 / AA NiCd batteries or nine alkaline batteries)or 10-16 VDC external |
| Current drain / power consumption | RX: 90 mA (Squelched)TX: Max 600 mA |
| Antenna impedance / connector | 50 ohm / BNC and SO-239 |
| Dimensions (W*H*D) | 129*52*191 mm (5.08*2.05*7.52") |
| Weight | 1.25 Kg (2.76 lb) |
| Other features | NB. 1750 Hz repeater tone. |
RECEIVER SECTION
| Receiver system | Single conversion superheterodyne (SSB/CW) IF: 10.7 MHz Double conversion superheterodyne (FM) 1st IF: 10.7 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | FM: 0.4 uV (12 dB SINAD)SSB/CW: 0.3 uV (10 dB S/N) |
| Selectivity | FM 25 KHz (-60 dB) SSB/CW 4.2 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 1 W at 10% distortion / 8 ohm |
| External speaker connector | 3.5 mm, 8 ohm |
TRANSMITTER SECTION
| RF output power | 1 W |
|---|---|
| Modulation system | FM: Reactance SSB: Balanced |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 600 ohm / 7-pin (Metal locking ring connector) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1981-198x (Discontinued) |
|---|---|
| Additional info | New price 1981 in the UK: £235.00 |
| C207M C230 CLC8 CMB8 CPB58 (10) CPB58 (25) NC8 | External speaker Wall charger, 240 VAC Carrying case with straps Mobile bracket 10 W linear amplifier 25 W linear amplifier NiCd battery pack |
