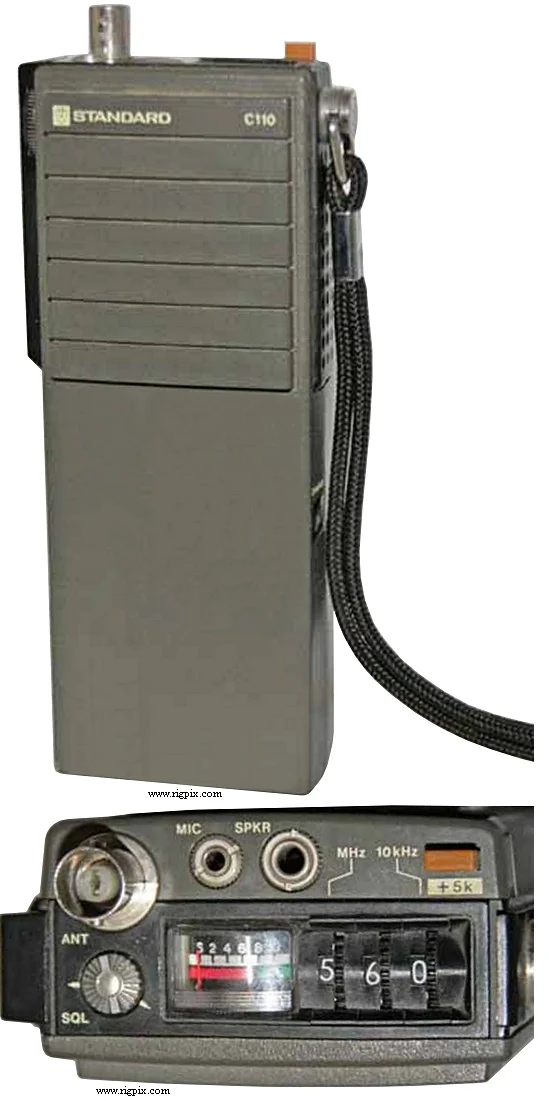

C-110
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency rangedepending on version | Type W TX: 144-146 MHz RX: 144-146 MHz Type E TX: 144-148 MHz RX: 144-148 MHz |
| Tuning steps | 10 / 100 KHz, 1 MHz (Thumbwheels) plus a 5 KHz button |
| Frequency stability | ±? ppm |
| Mode | FM |
| Channels / memory management | None |
| Repeater shift / offset | ±600 KHz |
| Power supply | 7-10 VDC (Depending on battery pack)or 5.5-11 VDC external |
| Current drain / power consumption | RX: 20 mA (Squelched)TX: 750 mA @ 9 VDC |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 65*167*34 mm (2.56*6.58*1.34") |
| Weight | 470 g (1.04 lb), with batteries and antenna |
| Other features | S/battery meter. 1750 Hz repeater tone. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 10.695 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | — |
| Selectivity | 14 KHz (-6 dB) |
| Image rejection | — |
| AF output power / speaker | 300 mW at 10% distortion / 8 ohm |
| External speaker connector | 3.5 mm |
TRANSMITTER SECTION
| RF output power | HighLow 2 m:2-2.5 W150 mW The high power setting depends on voltage / battery pack. |
|---|---|
| 2 m | 2-2.5 W |
| Modulation system | Reactance modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 600 ohm / ?-conductor (2.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1983-198x (Discontinued) |
|---|---|
| Additional info | — |
| CNB-110 ? | NiCd battery pack Battery case (Six LR6 / AA batteries) |
