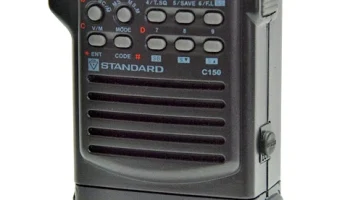

C-150E
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 MHz RX: 136-174 MHz |
| Tuning steps | 5 / 10 / 12.5 / 20 / 25 / 50 / 100 KHz, 1 MHz |
| Frequency stability | ±? ppm |
| Mode | FM |
| Channels / memory management | 20 regular |
| Repeater shift / offset | ±0-39.995 MHz in 5 KHz steps |
| Power supply | ? VDC (NiCd battery pack) or 5-16 VDC external |
| Current drain / power consumption | RX:? mATX:? A |
| Antenna impedance / connector | 50 ohms / BNC |
| Dimensions (W*H*D) | 55*?*31 mm (2.16*?*1.22") |
| Weight | 300 g (10.58 oz) |
| Other features | 1750 Hz repeater tone. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | 0.165 uV (12 dB SINAD) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 400 mW at ?% distortion /? ohms |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighLow 2 m:2-5 W300 mW NB! The high power setting depends on voltage/battery pack |
|---|---|
| 2 m | 2-5 W |
| Modulation system | Reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 19xx-19xx (Discontinued) |
|---|---|
| Additional info | — |
| CBT150 CBT151 CHP111 CLC151 CLC152 CMB111 CMP111 CMP112 CNB151 CNB152 CNB153 CSA150 CTD150 CTN150 CWC151 | Dry cell battery case Dry cell battery case (6*LR6/AA batteries) Headset with PTT Soft case, for use with CNB151 Soft case, for use with CNB152 and CNB153 Mobile bracket Speaker-microphone Compact speaker-microphone NiCd battery pack. 7.2 V, 700 mAh NiCd battery pack. 12 V, 600 mAh NiCd battery pack. 7.2 V, 1000 mAh Desktop Quick charger DTMF unit Tone squelch unit Standard AC charger |
