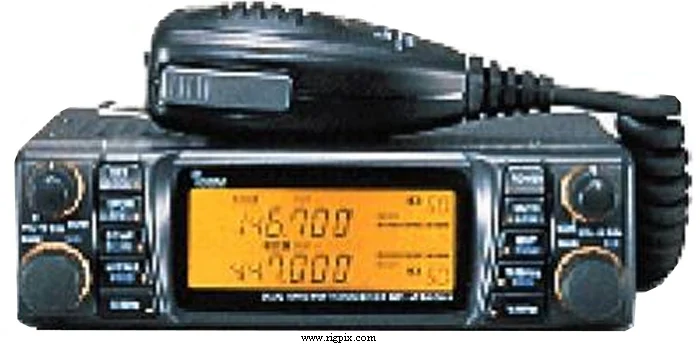

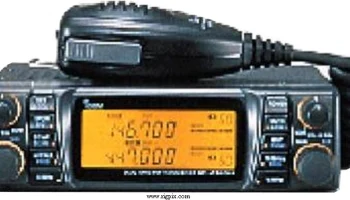

IC-2340E
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 / 430-440 MHz RX: 144-146 / 430-440 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability | Max? ppm |
| Mode | FM |
| Channels / memory management | 50 regular 2 scan edges 2 call (1 per band) Non-volatile EEPROM storage |
| Repeater shift / offset | ±? |
| Power supply | 13.8 VDC ±15% |
| Current drain / power consumption | RX: 1.2-1.8 A (Dual band receive)TX: 2.5-7 A |
| Antenna impedance / connector | 50 ohm / SO-239 (On pigtail) |
| Dimensions (W*H*D) | 140*40*165 mm (5.51*1.58*6.5") |
| Weight | 1.3 Kg (2.87 lb) |
| Other features | CTCSS/PL encoder. Twin RX. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 17.2 MHz (VHF), 30.85 MHz (UHF) 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.16 uV (12 dB SINAD) |
| Selectivity | 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 2.4 W at 10% distortion / 8 ohm |
| External speaker connector | 3.5 mm, 4-8 ohm |
TRANSMITTER SECTION
| RF output power | HighMidLow 2 m:25 W10 W1 W 70 cm:25 W10 W1 W |
|---|---|
| 2 m | 25 W |
| 70 cm | 25 W |
| Modulation system | Variable reactance frequency modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 600 ohm / 8-pin modular (On pigtail) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1994-199x (Discontinued) |
|---|---|
| Additional info | — |
| AH-32 AHB-32 HM-77/A HM-78 HM-79 IC-PS30 MB-17A MB-59 OPC-345 OPC-440 SP-7 SP-10 SP-12 UT-55 UT-66 UT-89 | Dual band mobile antenna (Requires AHB-32) Trunk mount for AH-32 Hand microphone with DTMF pad and 1750 Hz tone call Hand microphone Hand microphone with 1750 Hz tone call Power supply. 13.8 VDC, 25 A Mobile mounting bracket, one-touch type Mobile mounting bracket DC power cable. 3 m (9.8 ft) Microphone extension cable. 5 m (16.4 ft) External speaker. 8 ohm, 5 W External speaker. 4 ohm, 5 W External speaker. 8 ohm, 3 W DTMF encoder/decoder unit Voice synthesizer unit Tone squelch unit |
