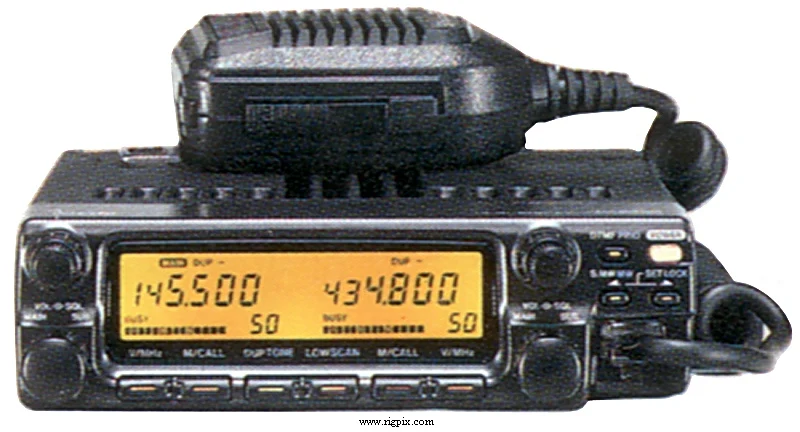

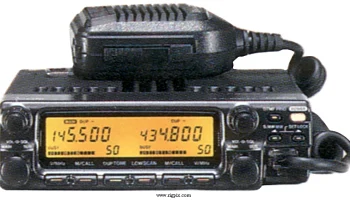

IC-2350H
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 / 430-440 MHz RX: 118-174 / 320-479 / 830-950 MHz USA TX: 144-148 / 440-450 MHz RX: 118-174 / 320-479 / 830-950 MHz Asia TX: 144-148 / 430-440 MHz RX: 118-174 / 320-479 / 830-950 MHz Italy TX: 144-148 / 430-440 MHz RX: 118-174 / 320-479 / 830-950 MHz (The wide RX frequency range may require modification for some markets) |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability | ±? ppm @ -10 to +60°C (14 to 140°F) |
| Mode | TX: FMRX: AM / FM |
| Channels / memory management | 100 regular (50 per band) 2 call (1 per band) 4 scratch pad (2 per band) 2 scan edge pairs (1 per band) Priority watch Non-volatile EEPROM storage |
| Repeater shift / offset | Programmable |
| Power supply | 13.8 VDC ±15% |
| Current drain / power consumption | RX: 1.2 to 1.8 ATX: 4.5 to 11.5 A |
| Antenna impedance / connector | 50 ohm / SO-239 |
| Dimensions (W*H*D) | 140*40*204 mm (5.51*1.58*8.03") |
| Weight | 1.2 Kg (2.65 lb) |
| Other features | CTCSS/PL encoder (Optional decoder). Scanning. Dimmer. Twin RX. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 17.2 MHz (VHF), 30.85 MHz (UHF) 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.16 uV (12 dB SINAD) |
| Selectivity | 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | >60 dB |
| AF output power / speaker | 2.4 W at 10% distortion / 8 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighMidLow 2 m:50 W10 W5 W 70 cm:35 W10 W5 W |
|---|---|
| 2 m | 50 W |
| 70 cm | 35 W |
| Modulation system | Variable reactance frequency modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |

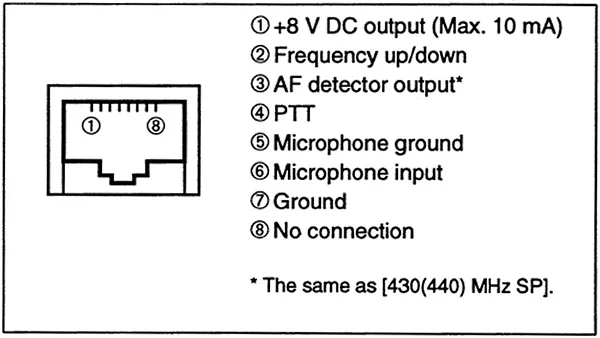

| Microphone impedance / connector | 600 ohm / 8-pin modular |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1995-199x (Discontinued) |
|---|---|
| Additional info | New price 1995 in Sweden: SEK 6995:- |
| AH-32 AHB-32 HM-77/A HM-78 HM-79 HM-95 HM-96 HM-97 MB-17A IC-PS30 OPC-346 OPC-347 OPC-589 SP-7 SP-10 SP-12 UT-89 UT-101 | VHF/UHF dual band mobile antenna Trunk mount antenna base for AH-32 DTMF microphone with 14 memories Hand microphone DTMF microphone with 1750 Hz tone call Standard DTMF microphone Hand microphone Hand microphone with 1750 Hz tone call Mobile mounting bracket AC power supply. 13.8 VDC, 25 A DC power cable. 3 m (9.8 ft) DC power cable. 7 m (23 ft) Microphone adapter cable External speaker External speaker External speaker Tone squelch unit with tone scan DTMF encoder/decoder unit |
