WR-3000i-DSP
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.15-1500 MHz (Cellular blocked in the US) |
| Tuning steps | AM/FM/WFM: 100 HzSSB/CW: 10 Hz |
| Frequency stability | 10 ppm @ 0 to 60°C (32 to 140°F) |
| Mode | AM / FMN / WFM / SSB / CW |
| Channels / memory management | AM/SSB/CW: 10 channels per second FM/WFM: 50 channels per second |
| Power supply | ? VDC (Provided by ISA bus) |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 290*115*? mm (11.5*4.5*?") |
| Weight | ? g (? oz) |
| Other features | Spectrum scope. Visitune. DSP. |
RECEIVER SECTION

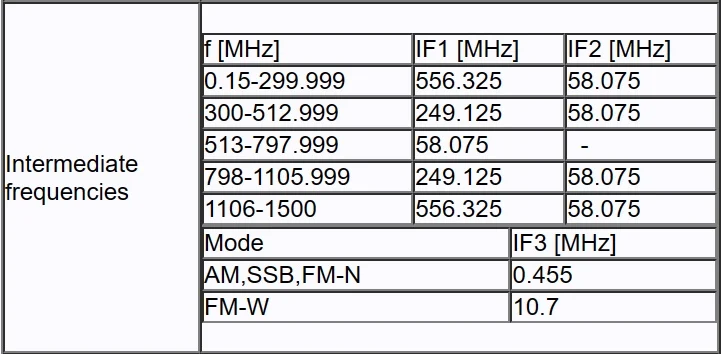

| Receiver system | Triple conversion superheterodyne IF matrix |
|---|---|
| Sensitivity | AM (10 dB S/N) 0.5-1.5 MHz: 5 uV 1.5-30 MHz: 1 uV 30-1000 MHz: 1 uV 1000-1500 MHz: 5 uV FM (12 dB SINAD) 0.5-1.5 MHz: 1 uV 1.5-30 MHz: 0.5 uV 30-1000 MHz: 0.5 uV 1000-1500 MHz: 1 uV WFM (12 dB SINAD) 30-1000 MHz: 2 uV 1000-1500 MHz: 4 uV SSB/CW (10 dB S/N) 0.5-1.5 MHz: 2.5 uV 1.5-30 MHz: 0.5 uV 30-1000 MHz: 0.7 uV 1000-1500 MHz: 2.5 uV |
| Selectivity | AM 6 KHz (-6 dB) FM 17 KHz (-6 dB) WFM 230 KHz (-6 dB) SSB/CW 2.5 KHz (-6 dB) |
| Image rejection | 0.15-513 MHz: 65 dB798-1500 MHz: 60 dB |
| AF output power / speaker | 200 mW at ?% distortion / 8 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | 1997-2002 (Discontinued) |
|---|---|

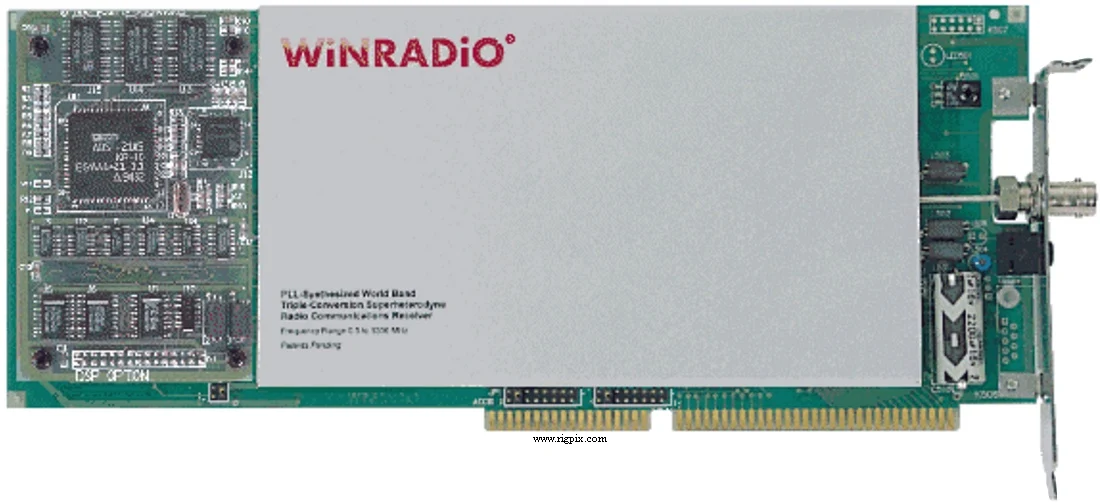

| Additional info | Internal ISA card |
