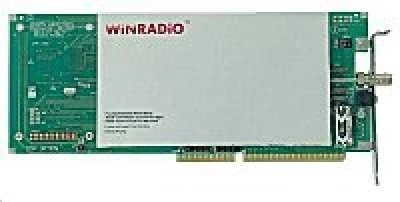

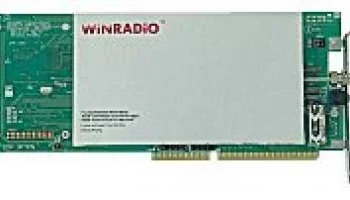

WR-3100i-DSP
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.15-1500 MHz (Cellular blodcked in the USA) |
| Tuning steps | — |
| Frequency stability | 10 ppm @ 0 to 60°C (32 to 140°F) |
| Mode | AM / FM / WFM / SSB / CWNB! No WFM below 30 MHz |
| Channels / memory management | Virtually unlimited AM/SSB: 10 channels per second FM/WFM: 50 channels per second |
| Power supply | ? VDC (Supplied by ISA bus) |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | ? mm (?") |
| Weight | ? Kg (? lb) |
| Other features | — |
RECEIVER SECTION

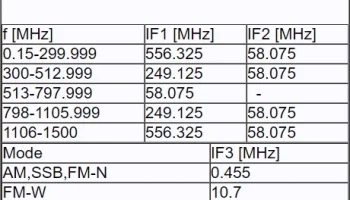

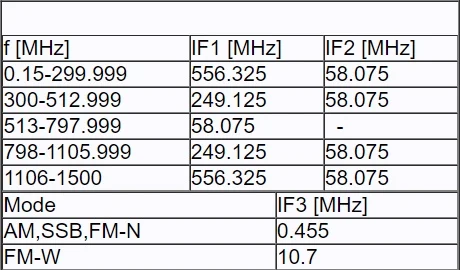

| Receiver system | Triple conversion superheterodyne IF matrix |
|---|---|
| Sensitivity | AM (10 dB S/N) 0.5-1.5 MHz: 5 uV 1.5-30 MHz: 1 uV 30-1000 MHz: 1 uV 1000-1500 MHz: 1.5 uV FM (12 dB SINAD) 0.5-1.5 MHz: 0.9 uV 1.5-30 MHz: 0.35 uV 30-1000 MHz: 0.35 uV 1000-1500 MHz: 0.4 uV WFM (12 dB SINAD) 30-1000 MHz: 1 uV 1000-1500 MHz: 1 uV SSB/CW (10 dB S/N) 0.5-1.5 MHz: 0.9 uV 1.5-30 MHz: 0.3 uV 30-1000 MHz: 0.3 uV 1000-1500 MHz: 0.5 uV |
| Selectivity | AM 6 KHz (-6 dB) FM 15 KHz (-6 dB) WFM 230 KHz (-6 dB) SSB/CW 2.5 KHz (-6 dB) |
| Image rejection | 0.15-513 MHz: 65 dB798-1500 MHz: 60 dB |
| AF output power / speaker | 200 mW at ?% distortion / No internal speaker |
| External speaker connector | 3.5 mm |
MISCELLANEOUS
| Manufactured | 1998-2003 (Discontinued) |
|---|---|
| Additional info | Internal ISA card |
