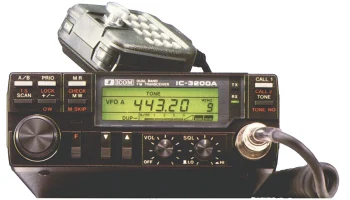

IC-3200A
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | USA TX: 140-150 / 440-450 MHz RX: 140-150 / 440-450 MHz Australia TX: 144-148 / 430-440 MHz RX: 144-148 / 430-440 MHz Asia TX: 140-150 / 430-440 MHz RX: 140-150 / 430-440 MHz |
| Tuning steps | 5 / 15 / 25 KHz (USA)5 / 25 KHz (Australia)5 / 15 / 25 KHz (Asia) |
| Frequency stability | ±0.001% @ -10 to +60°C (14 to 140°F) |
| Mode | FM |
| Channels / memory management | 10 regular 2 call Priority watch RAM storage with lithium battery backup |
| Repeater shift / offset | Programmable |
| Power supply | 13.8 VDC ±15% |
| Current drain / power consumption | RX: 500 to 650 mATX: 3.5 to 7.5 A |
| Antenna impedance / connector | 50 ohm / SO-239 (On pigtail) |
| Dimensions (W*H*D) | 140*50*207 mm (5.51*1.97*8.15") |
| Weight | 1.9 Kg (4.19 lb) |
| Other features | CTCSS/PL encoder. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 30.875 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.2 uV (12 dB SINAD) |
| Selectivity | 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 1.7 W at 10% distortion / 8 ohm |
| External speaker connector | 3.5 mm, 4-8 ohm |
TRANSMITTER SECTION
| RF output power | HighLow 2 m:25 W5 W 70 cm:25 W5 W |
|---|---|
| 2 m | 25 W |
| 70 cm | 25 W |
| Modulation system | Variable reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1985-198x (Discontinued) |
|---|---|
| Additional info | New price 1989 in the US: $469.95 |
| HM-12 HM-14 HM-15 HS-15 HS-15SB OPC-102 PS-45 SM-8 SP-3 SP-4 SP-10 UT-23 | Hand microphone with up/down buttons Hand microphone with up/down buttons and DTMF pad Hand microphone with up/down buttons and 1750 Hz tone call Flexible mobile microphone PTT switch box DC power cable. Max 10 A (for connecting to PS-45) AC power supply. 13.8 VDC, 8 A Electret desk microphone External speaker External speaker External speaker Voice synthesizer unit |
