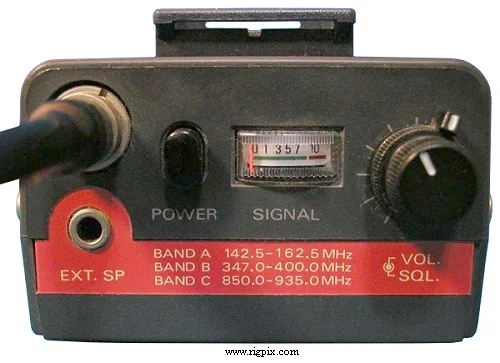

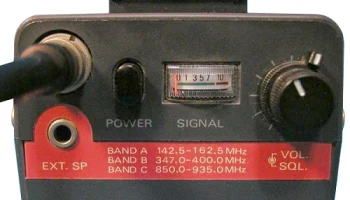

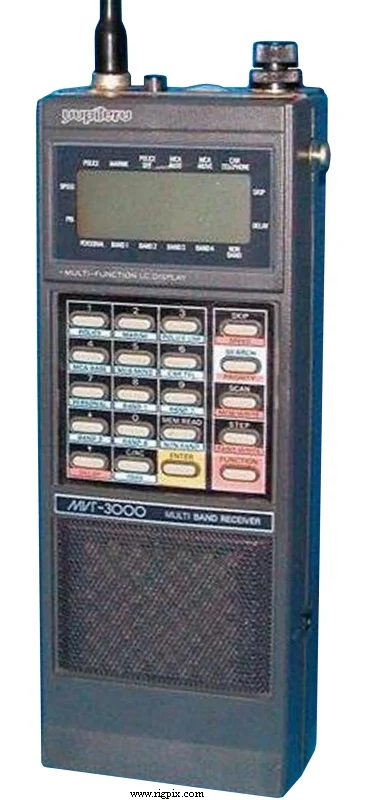

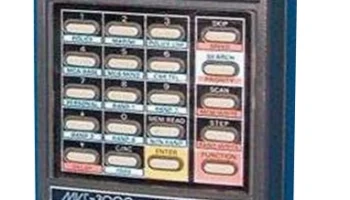

MVT-3000
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 142.5-162.5 / 347-400 / 850-935 MHz |
| Tuning steps | — |
| Frequency stability | — |
| Mode | FM |
| Channels / memory management | 10 regular @ 16 channels per second |
| Power supply | 4.8-6 VDC (Four R6/AA alkaline or NiCd batteries)or 12 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / ? |
| Dimensions (W*H*D) | 67*175*40 mm (2.64*6.89*1.58") |
| Weight | ? g (? lb) |
| Other features | Analog S-meter. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | 3.5 mm |
MISCELLANEOUS
| Manufactured | Japan, 198x-198x (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
