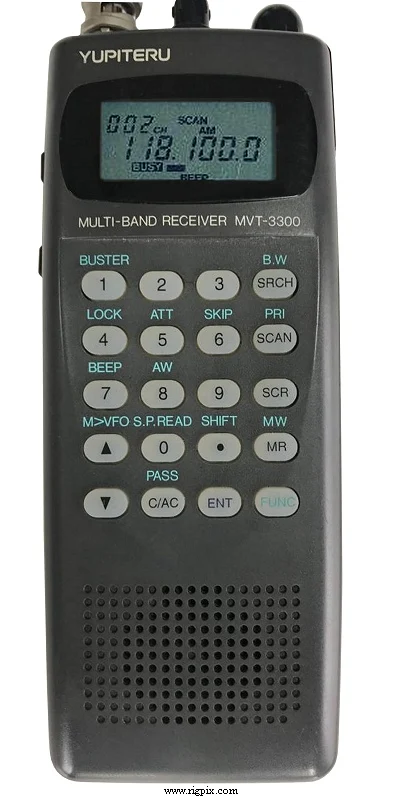

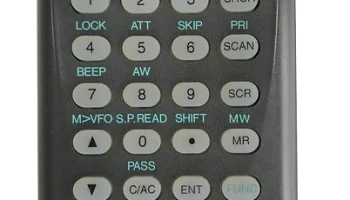

MVT-3300
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | Japanese domestic market 108-170 / 300-470 / 806-1000 MHz |
| Tuning steps | 6.25 / 10 / 12.5 / 25 KHz |
| Frequency stability | — |
| Mode | AM / FM |
| Channels / memory management | 200 regular in 10 banks @ 16 channels per second 10 priority |
| Power supply | 4.8-6 VDC (Four R6 / AA alkaline or rechargeable batteries)or 12 VDC external |
| Current drain / power consumption | 72-170 mA |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 59*152*32 mm (2.32*5.98*1.26") |
| Weight | 310 g (10.93 oz) |
| Other features | Speech descrambler. Attenuator. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | AM: 0.7 uV (No reference) FM: 0.5 uV (No reference) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 100 mW at 10% distortion / 8 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 199x-199x (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
