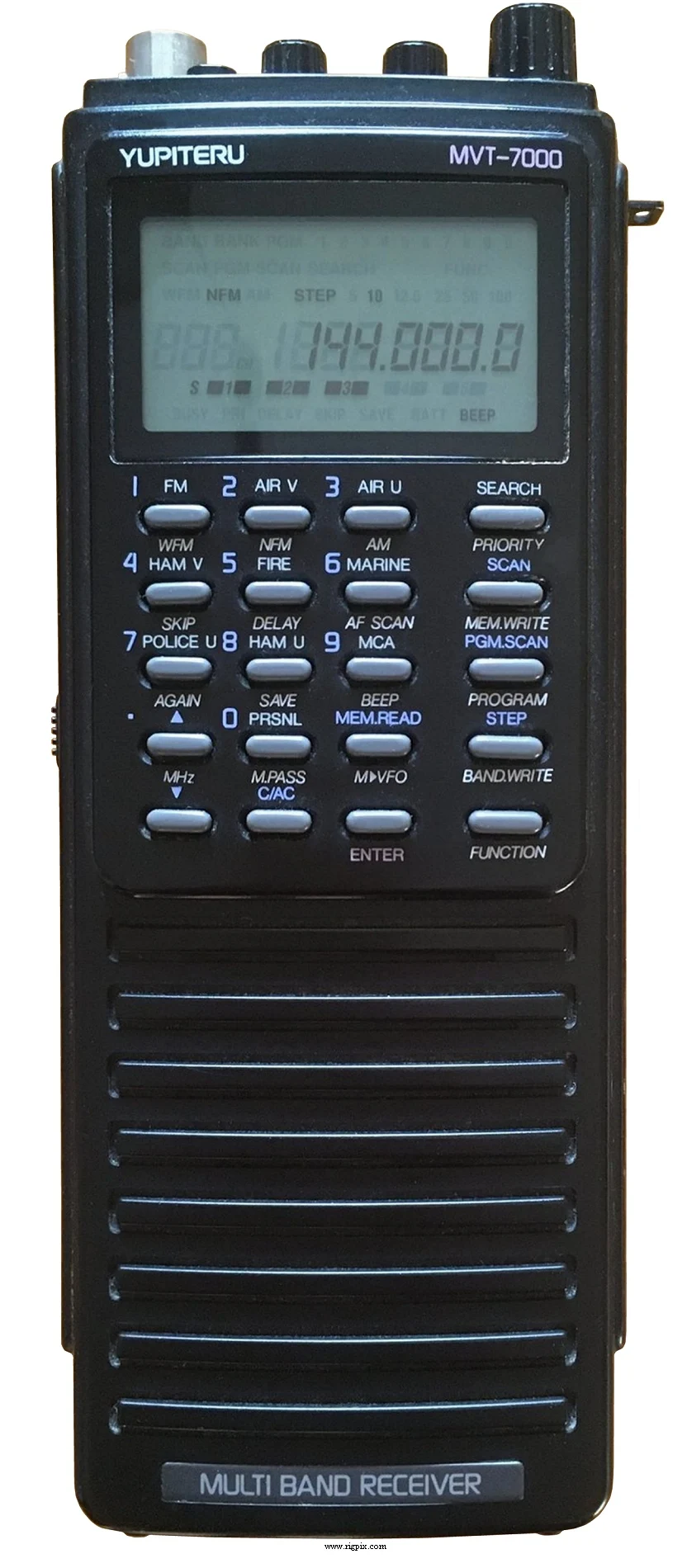

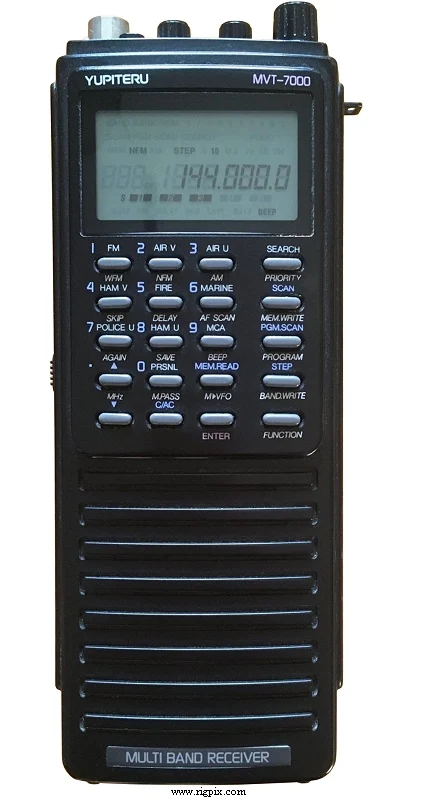

MVT-7000
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 8-1300 MHz Display range is 0.1-1300 MHz, but specifications are not guaranteed below 8 MHz |
| Tuning steps | AM/FM: 5 / 10 / 12.5 / 25 / 50 / 100 KHz WFM: 50 / 100 KHz |
| Frequency stability | — |
| Mode | AM / FM / WFM |
| Channels / memory management | 200 regular in 10 banks 10 program scan 1 priority |
| Power supply | 4.8-6 VDC (Four R6 / AA NiCd or alkaline batteries)or 12 VDC external |
| Current drain / power consumption | 95-160 mA |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 70*180*40 mm (2.76*7.09*1.58") |
| Weight | 248 g (8.75 oz), without batteries and antenna |
| Other features | AF scan. Backlit display. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 592.2 or 227.4 MHz (Depending on band) 2nd IF: 45 MHz 3rd IF: 455 KHz (AM/FM) — 10.7 MHz (WFM) |
|---|---|
| Sensitivity | AM: 0.5 uV (10 dB S/N) FM: 0.5 uV (12 dB SINAD) WFM: 0.7 uV (12 dB SINAD) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 130 mW at ?% distortion / 8 ohm |
| External speaker connector | 3.5 mm |
MISCELLANEOUS
| Manufactured | Japan, 1990-199x (Discontinued) |
|---|---|
| Additional info | New price 1991 in Sweden: SEK 3995:- New price 1993 in the UK: £349.00 |
| - | - |
