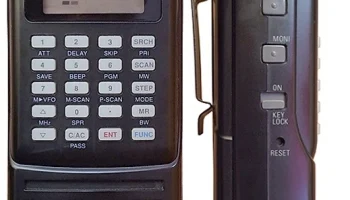

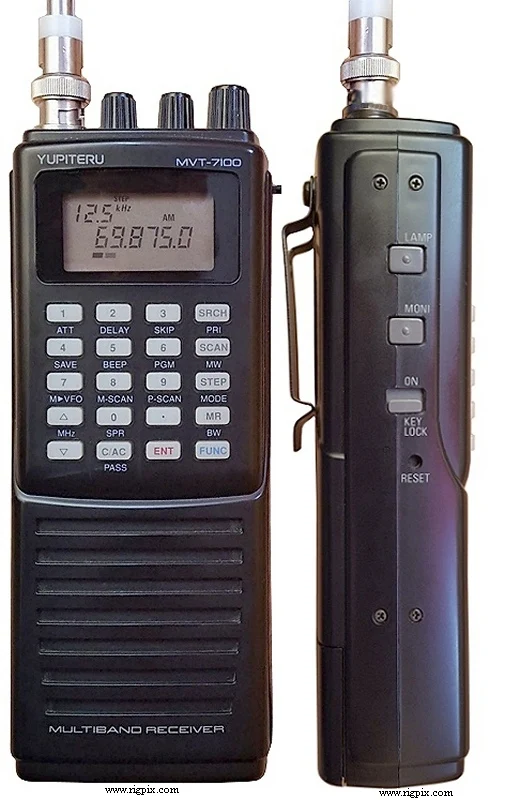

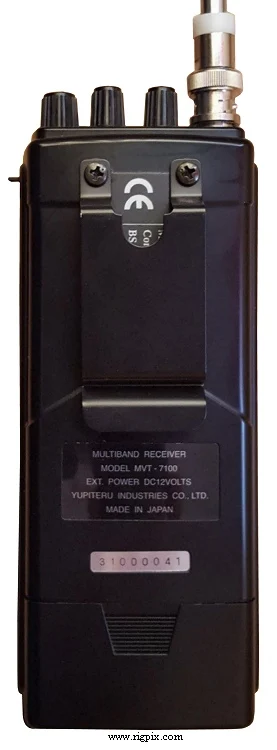

MVT-7100
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.53-1650 MHz (Can tune down to 0.1 MHz, but specifications not guaranteed) |
| Tuning steps | 50 / 100 Hz1 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 50 / 100 KHz |
| Frequency stability | — |
| Mode | AM / FM / WFM / SSB / CW |
| Channels / memory management | 1000 regular @ 30 channels per second 500 search pass 10 search band 1 priority |
| Power supply | 4.8-6 VDC (Four R6 / AA alkaline or NiCd batteries)or 12 VDC external |
| Current drain / power consumption | 10-140 mA |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 64*155*38 mm (2.52*6.1*1.5") |
| Weight | 320 g (11.29 oz) |
| Other features | Attenuator. Backlit display. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 592.3 / 227.5 MHz (Depending on band) 2nd IF: 45.1 MHz 3rd IF: 455 KHz (FM) — 10.7 MHz (AM/SSB/CW/WFM) |
|---|---|
| Sensitivity | AM (10 dB S/N) 0.53-2 MHz: 10 uV 2-30 MHz: 1.5 uV 30-1000 MHz: 0.5 uV FM (12 dB SINAD) 2-30 MHz: 1.5 uV 30-1000 MHz: 0.5 uV 1000-1300 MHz: 1 uV WFM (12 dB SINAD) 30-1000 MHz: 0.75 uV SSB/CW (10 dB S/N) 2-30 MHz: 1 uV 30-1000 MHz: 0.5 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | FM 12 KHz (-6 dB)25 KHz (-40 dB) |
| Image rejection | — |
| AF output power / speaker | 100 mW at ?% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm) |
MISCELLANEOUS
| Manufactured | Japan, 1993-199x (Discontinued) |
|---|---|
| Additional info | New price 1993 in Sweden: SEK 6400:- New price 1993 in the UK: £369.00 |
| - | - |
