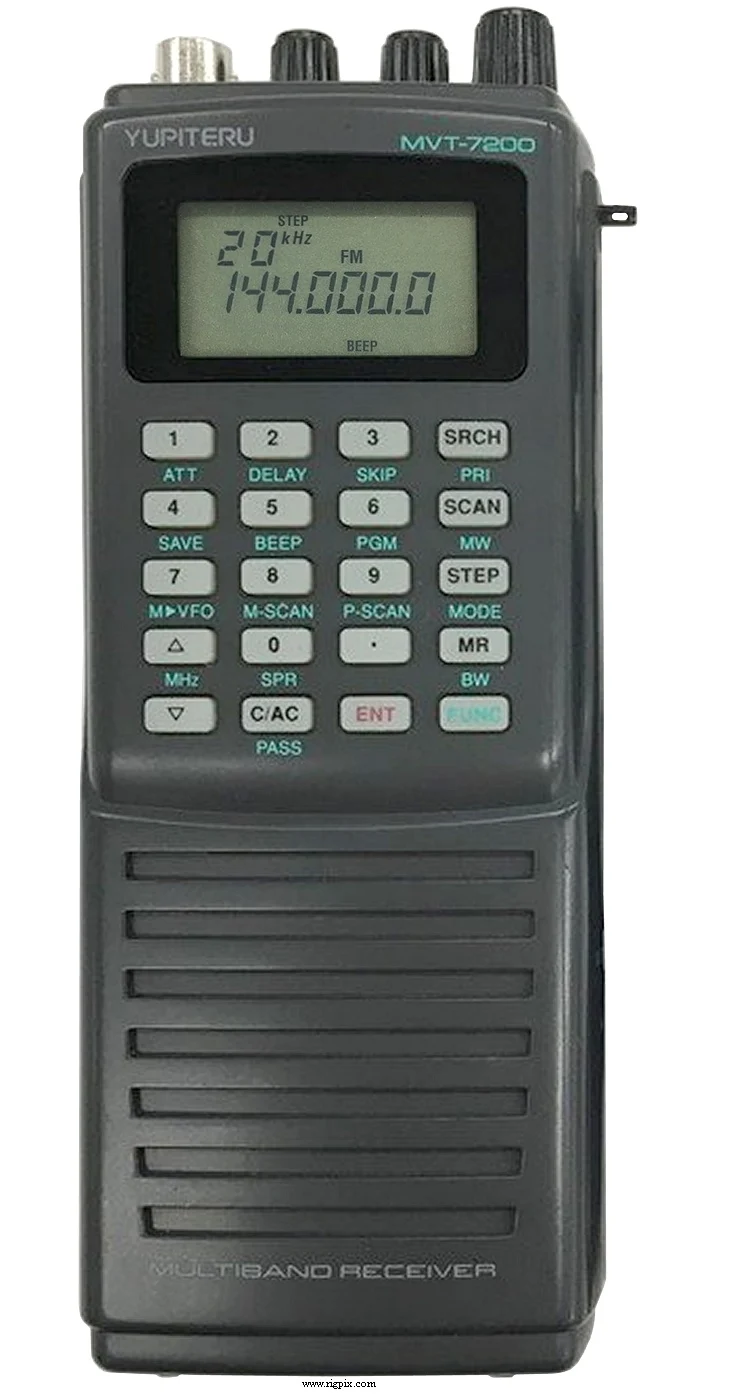

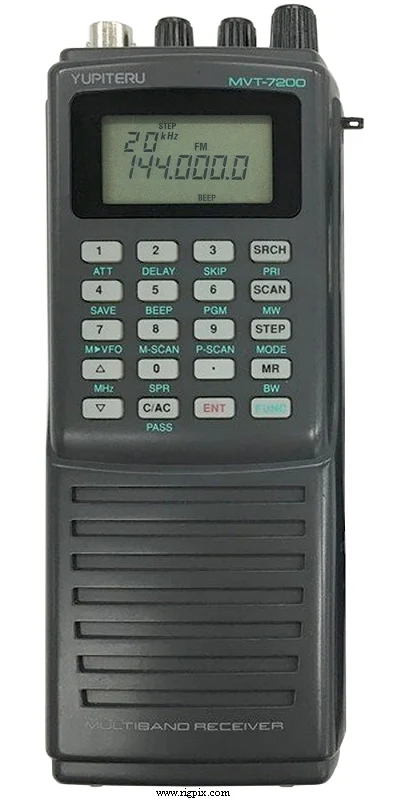

MVT-7200
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.53-1650 MHz |
| Tuning steps | — |
| Frequency stability | — |
| Mode | AM / FM / WFM / SSB / CW |
| Channels / memory management | 1000 regular @ 30 channels per second |
| Power supply | 4.8-6 VDC (Four R6 / AA alkaline or NiCd batteries)or 12 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 64*155*38 mm (2.52*6.1*1.5") |
| Weight | 320 g (11.29 oz) |
| Other features | — |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 199x-199x (Discontinued) |
|---|---|
| Additional info | Basically an updated MVT-7100 with a 2.4 KHz SSB filter, narrow AM and internal ferrite bar for MW reception. |
| - | - |
