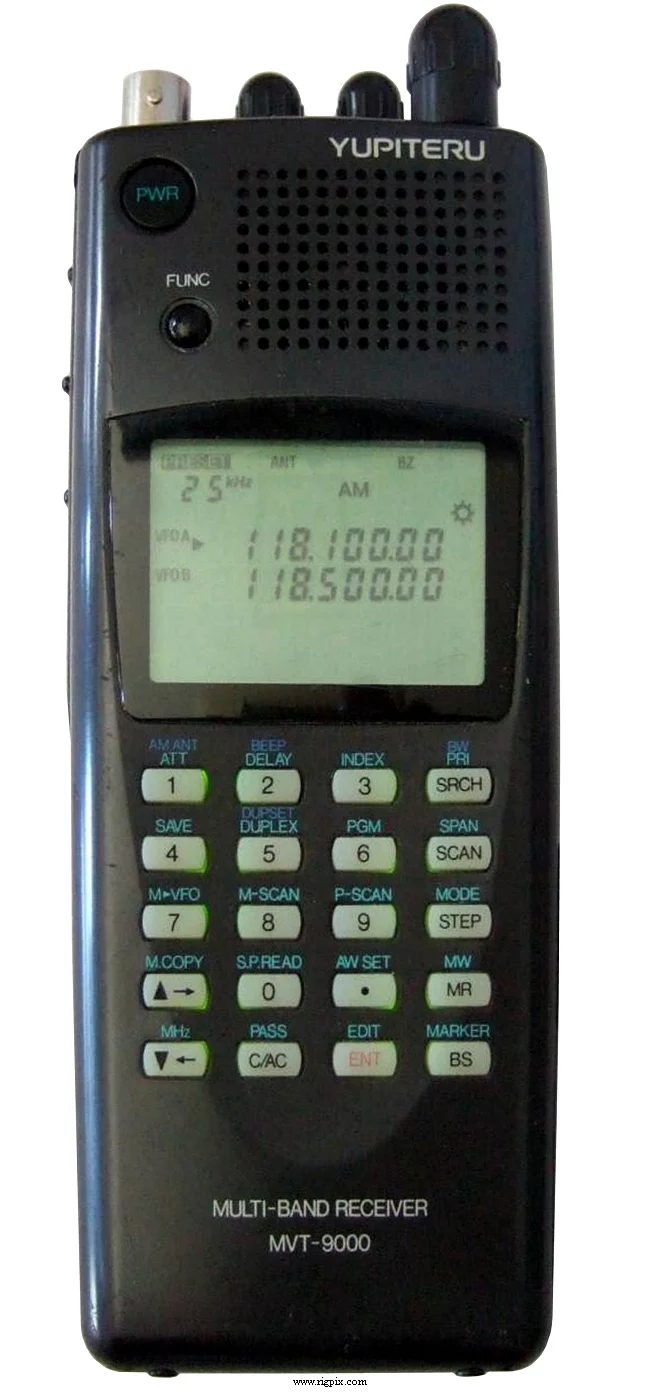

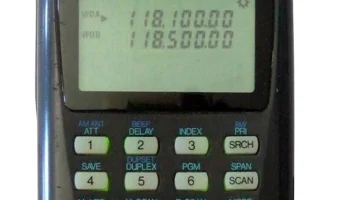

MVT-9000
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.53-2039 MHz |
| Tuning steps | 50 / 100 / 200 / 500 Hz1 / 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 KHz |
| Frequency stability | — |
| Mode | AM / FM / WFM / SSB / CW |
| Channels / memory management | 1000 regular in 20 banks with alpha tags 20 search banks Non volatile EEPROM storage |
| Power supply | 4.8-6 VDC (Four R6 / AA alkaline or NiCd batteries)or 12 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 66*155*40 mm (2.6*6.1*1.58") |
| Weight | 410 g (14.46 oz) |
| Other features | Realtime bandscope. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | AM (10 dB S/N) 2-30 MHz: 2.5 uV 30-470 MHz: 1 uV FM (12 dB SINAD) 30-470 MHz: 0.5 uV 470-1000 MHz: 0.75 uV 1000-1300 MHz: 1 uV 1300-2039 MHz: 2 uV WFM (12 dB SINAD) 30-470 MHz: 1 uV 470-1000 MHz: 1.5 uV SSB/CW (10 dB S/N) 2-30 MHz: 1 uV 30-470 MHz: 0.5 uV |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 19xx-19xx (Discontinued) |
|---|---|
| Additional info | — |
| OP-90 | Vinyl case |
