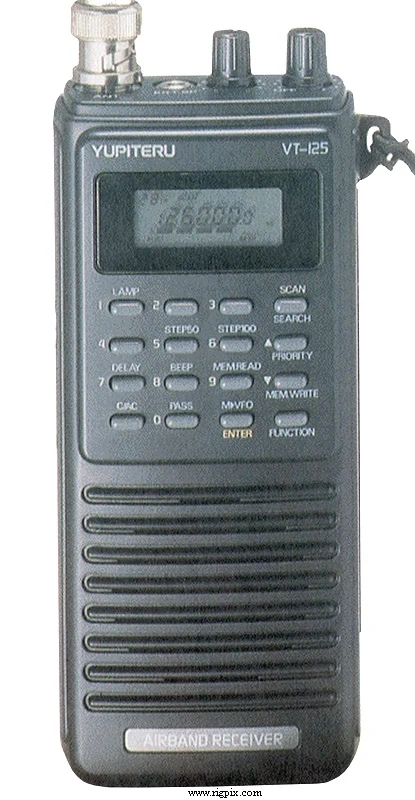

VT-125
Источник:
GENERAL
| Type | VHF receiver/scanner |
|---|---|
| Frequency range | 108-142 MHz |
| Tuning steps | — |
| Frequency stability | — |
| Mode | AM |
| Channels / memory management | 30 regular |
| Power supply | 3.6-4.5 VDC (Three R6 / AA alkaline or rechargeable batteries)or 12 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 72*127*36 mm (2.84*5*1.42") |
| Weight | 207 g (7.3 oz) |
| Other features | — |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 19xx-19xx (Discontinued) |
|---|---|
| Additional info | New price 1993 in the UK: £169.00 |
| - | - |
