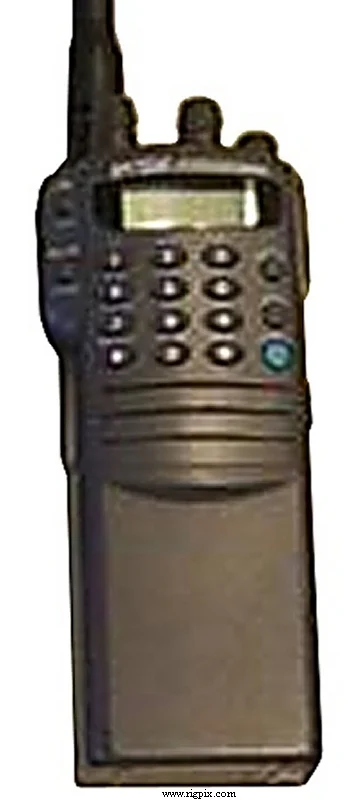

KT-355EE
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | Europe and Asia TX: 144-146 MHz RX: 137-174 MHz USA TX: 144-148 MHz RX: 137-174 MHz |
| Tuning steps | — |
| Frequency stability | ±? ppm |
| Mode | FM |
| Channels / memory management | 40 regular |
| Repeater shift / offset | ±? |
| Power supply | 7.2-12 VDC (Battery pack)or 6-16 VDC external |
| Current drain / power consumption | RX: 12-32 mATX: 0.4-1.3 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 54*130*33 mm (2.13*5.12*1.3") |
| Weight | 300 g (10.58 oz), with antenna and battery |
| Other features | CTCSS/PL. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 30.85 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.16 uV (12 dB SINAD) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighMidLow 2 m:2-4.5 W2-2.5 W350 mW NB! The high and mid setting depends on voltage/battery pack |
|---|---|
| 2 m | 2-4.5 W |
| Modulation system | — |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 19xx-19xx (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
